So I spent last night digging into laser-induced dewetting at midnight to figure out how to get a clean fiber engraving on a coin without dealing with nasty slag and heat-affected zones. The goal is basically using a fluid layer as a dynamic mask, and I got a solid baseline plan together based on the physics. Here is the breakdown of the details and the theory.

The Core Theory: The Marangoni Effect

The main problem you run into when you drop fluid onto metal and hit it with a pulsed laser comes down to severe temperature gradients. The 1064 nm beam creates an intense, localized hotspot instantly.

Because surface tension drops as temperature goes up, the hot water right under the beam loses its pulling power. The colder fluid surrounding it maintains a higher surface tension, so it pulls the rest of the liquid away from the center. This phenomenon is known as the Marangoni effect, or laser-induced dewetting.

Essentially, the laser punches a dry hole right through the puddle. If the fluid parts, the metal goes dry, and vaporized slag will weld itself straight back onto the coin, completely defeating the whole point of the mask.

Why Standard Water Domes Fail

Relying purely on surface tension to hold a natural dome or bubble over a 40 mm coin with a ridge simply doesn’t work:

• Surface Tension Collapse: The massive temperature spike breaks the dome’s structural integrity instantly.

• Cavitation Explosions: The Q-switched Raycus source fires in nanosecond pulses. That high peak power doesn’t just heat the metal; it vaporizes a micro-layer of fluid instantly, creating a tiny steam/plasma bubble that collapses violently. This is called cavitation. Without physical containment, these micro-explosions shatter the water dome and splatter it everywhere, leaving the center bone dry after just two passes.

The Fix: Mechanical Containment and Dual-Action Chemistry

To make this work as a reliable liquid mask, you have to force a flat, sub-1 mm layer over the substrate so it can’t pull away or part.

• Mechanical Fixturing: Instead of a free puddle, press the coin into modeling clay or a tight-fitting silicone putty ring. This creates a physical wall to trap the fluid mechanically so it stays completely flat.

• The Surfactant Effect (Dawn): Adding a tiny speck of Dawn dish soap breaks the water’s natural surface tension. Instead of beading up or pulling away into a hole from the Marangoni effect, the fluid is forced to completely flatten out into an even sheet under 1 mm deep.

• The Detergent Effect (Dawn): This is huge for the actual engraving quality. Dawn is an emulsifier made of amphiphilic molecules, meaning one end likes water and the other likes metals. When the Q-switched pulses vaporize the metal, that dust wants to clump together and weld itself right back onto the coin’s ridges. The Dawn instantly encapsulates those micro-particles of metal slag, suspending them in the fluid. It stops the debris from fusing to the substrate or clouding the laser’s path. Once the loop finishes, you just rinse the trapped dirt away and the surrounding metal stays perfectly clean.

• The Catch: You only need a micro-drop of Dawn mixed into distilled water first. Too much soap combined with cavitation pulses creates a foam machine. Those bubbles will scatter the 1064 nm beam completely.

Optics, Refraction, and Focusing

Water is denser than air, so it acts like a weak lens. It introduces optical refraction (refractive index of roughly 1.33), which changes the geometry of the laser’s focal cone.

• Focal Shift: The refraction pushes the actual tightest focus point deeper down by about 1/3 the depth of the fluid layer (roughly 0.3 mm for a 1 mm sheet).

• The Workflow: Because the Thunder Aurora 8 uses a high-precision Panasonic laser distance sensor for autofocus, it will get confused by a liquid surface reflection. The play here is to autofocus dry on the bare metal first, add the Dawn/distilled fluid sheet, and then manually nudge the Z-axis down by 0.3 mm to compensate for the water refraction.

Optics Shielding & Blast Window Setup

To protect the expensive f-theta lens from vapor, smoke, and moisture over long runs, a sacrificial piece of picture frame glass is introduced into the setup.

• Placement: Positioning the glass midway—about 5 inches from both the lens and the fluid surface—creates an optimal compromise. It is close enough to avoid optical ghosting or beam clipping at the edges of the field, but far enough from the fluid to avoid heavy, instant splashing.

• Tilt Angle (5 Degrees): Running the glass completely flat is dangerous because standard glass reflects roughly 4% of the beam right back up the throat of the galvo head, which can damage the internal optics or the Raycus source. Tilting the glass just 5 degrees kicks that back-reflection safely off to the side into the machine enclosure without warping the engraving geometry.

• Vapor & Maintenance: The close exhaust at the edge of the fluid layer creates a horizontal air duct under the 5 inch glass ceiling, pulling most of the steam away instantly. If any moisture eventually condenses on the glass over a long run, you just wipe it off and keep burning.

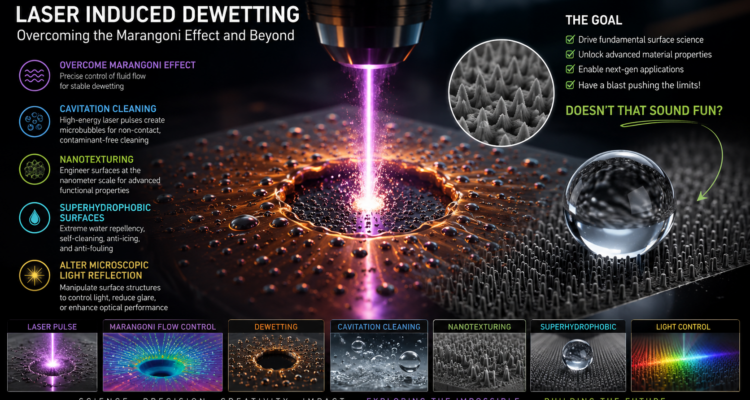

The Nanotech Connection: Manipulation at the Microscopic Scale

Controlling laser-induced dewetting on a sub-1 mm layer of fluid moves this from a standard workbench hack right into the realm of nanotechnology.

• Nanoscale Thermal Gradients: Your fiber laser spot size is incredibly tiny (roughly 30 to 50 microns), and the nanosecond pulses heat the metal instantly. You are creating a massive temperature drop over a microscopic area (about 1000 degrees Celsius across a 50 micron space). This extreme gradient creates a violent pulling force at the nanoscale. By mechanically locking the fluid and dropping the surface tension with a surfactant, you are actively stabilizing a nanoscale thermal force.

• Laser-Induced Cavitation Cleaning: The Q-switched pulse causes optical breakdown under the fluid, generating a microscopic plasma bubble. When this bubble collapses in nanoseconds, it creates highly focused micro-shockwaves. In industrial nanotech, this exact process is used for shockwave lithography and precision cleaning. It forcefully strips the slag away from the metal while the Dawn molecules lock onto the nano-debris to keep it from re-depositing.

• Potential for LIPSS (Nanotexturing): Running a 1064 nm beam through a liquid dielectric layer alters how light scatters on the surface. Under the right parameters, this can generate Laser-Induced Periodic Surface Structures (LIPSS)—microscopic ripples smaller than the wavelength of the laser itself. This is the exact same method cleanrooms use to create superhydrophobic surfaces or alter microscopic light reflection.

Laser Parameters for the 20W Raycus

Since a 20W Q-switched source relies on peak pulse power rather than continuous raw heat, the parameters have to be tuned specifically for the liquid barrier:

• Frequency: Low (20 to 30 kHz) to keep the pulse energy high enough to punch through the fluid.

• Speed: Moderate (300 to 500 mm/s) so the beam moves fast enough that it doesn’t give the fluid time to boil away completely in one spot, keeping the dynamic liquid mask intact across multiple cross-hatch passes.
