Parking Assist Warning Indicator: Service and Repair

INSPECTION

Test the buzzer by connecting battery voltage to terminal 1, and ground terminal 2.
The buzzer should make a sound. If the buzzer fails to make a sound, replace it.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel .

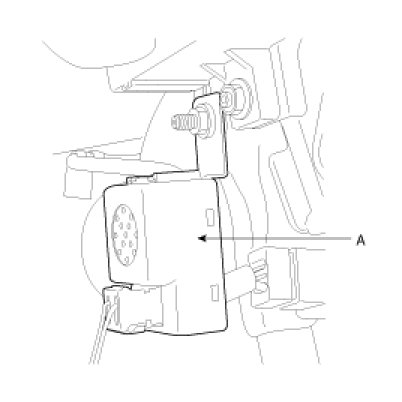

3. Remove the buzzer (A) after loosening the bolt and disconnecting the connector from the left side of IPM.




4. Installation is the reverse of removal procedure.
