Speaker: Service and Repair

Replacement

Front Speaker
1. Remove the front door trim panel .

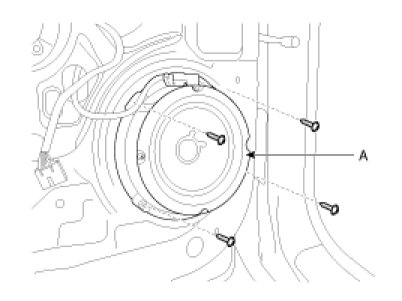

2. Remove the front speaker (A) after removing 4 screw.




3. Installation is the reverse of removal.

Rear Side Speaker
1. Remove the rear seats .
2. Remove the luggage trim after removing 4 bolts.

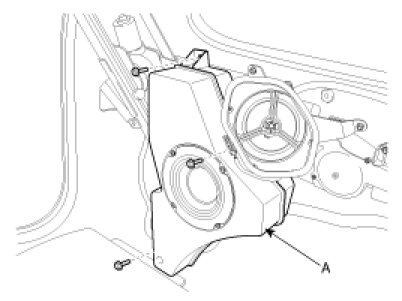

3. Remove the rear side speaker(A) .




4. Installation is the reverse of removal.

Tweeter Speaker

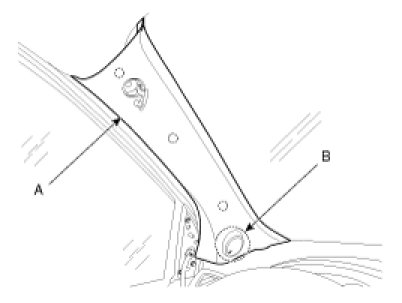

1. Remove the tweeter speaker (B) after removing the front filler trim(A) and disconnecting the connector.








2. Installation is the reverse of removal.

Woofer Speaker
1. Remove the rear seats.
2. Remove the luggage side trim

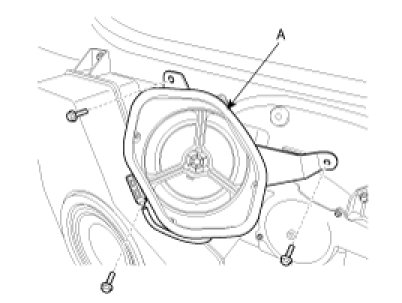

3. Remove the woofer speaker (A) after removing 4 bolts.




4. Installation is the reverse of removal.

External Amplifier
1. Remove the driver seat.

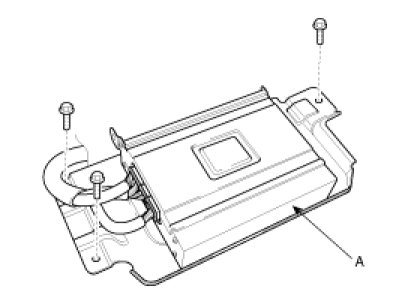

2. Remove the external amplifier (A) after removing 3 bolts.




3. Installation is the reverse of removal.

Front Center Speaker
1. Remove the center facia panel.




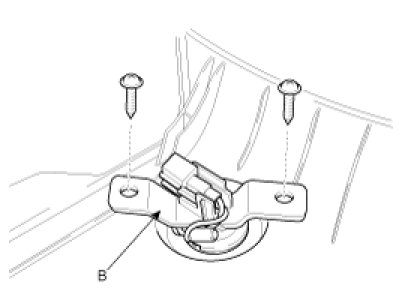

2. Installation is the reverse of removal.

Inspection

1. Troubleshooting for Speaker

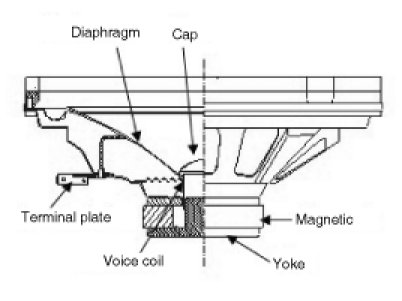

(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.

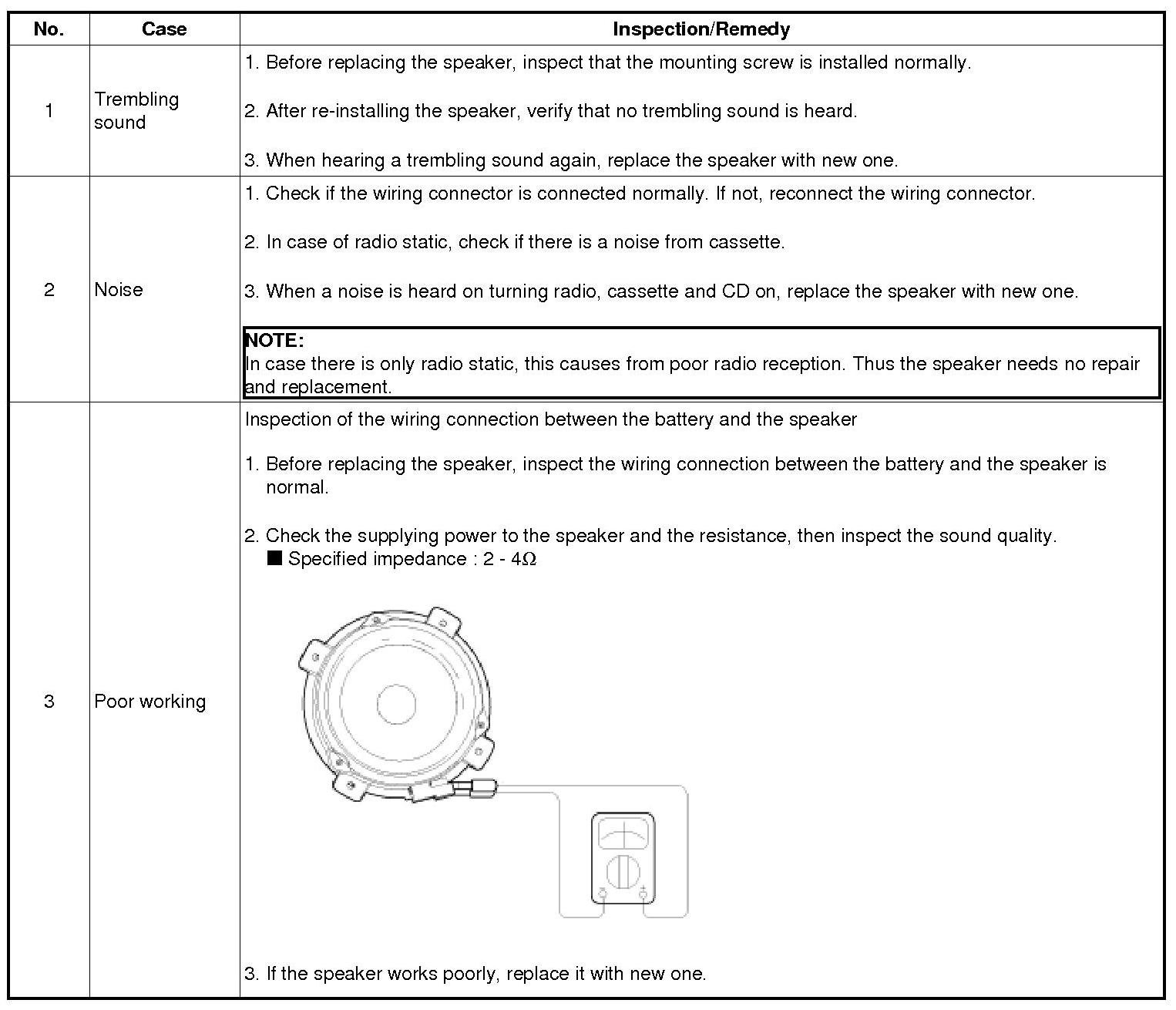

(2) Case Troubleshooting






CAUTION:
- During dealing of speaker
- Do not damage the speaker with impact as like a drop and a throw.
- Be careful not to cover water and oil over the speaker.
- Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
- When modifying audio system as customer pleases, this does electric damage to speaker.
- And, in this case the speakers are not covered by the manufacturer's warranty.
