Auxiliary Input / Output Jack: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A).

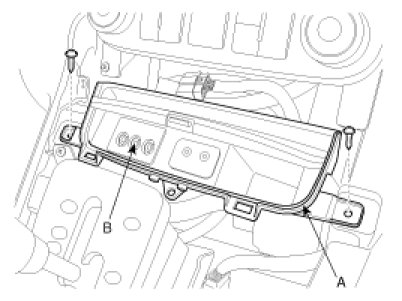

3. Remove the AUX jack (B) after removing the tray(A) mounting screws.






Installation

1. Install the AUX jack and tray.
2. Install the center facia panel, console lower cover, center air vent, switches, tray and heater control panel.
3. Connect the negative (-) battery terminal.

Inspection

1. Disconnect the negative(-) battery terminal.

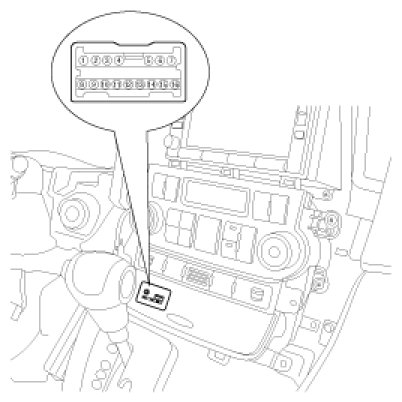

2. Disconnect the Multi Media Jack connector after from the floor console.




To inspect USB/IPOD port, check the voltage between NO.1 and 4 terminal of.

Standard value : 5V

To inspect AUX Jack, check the voltage between NO.14 terminal of Jack output connector and NO.4 terminal of USB/IPOD input port at AUX input.

Standard value : 5V
