Components and Components Location (2010-12-15 from)





Components

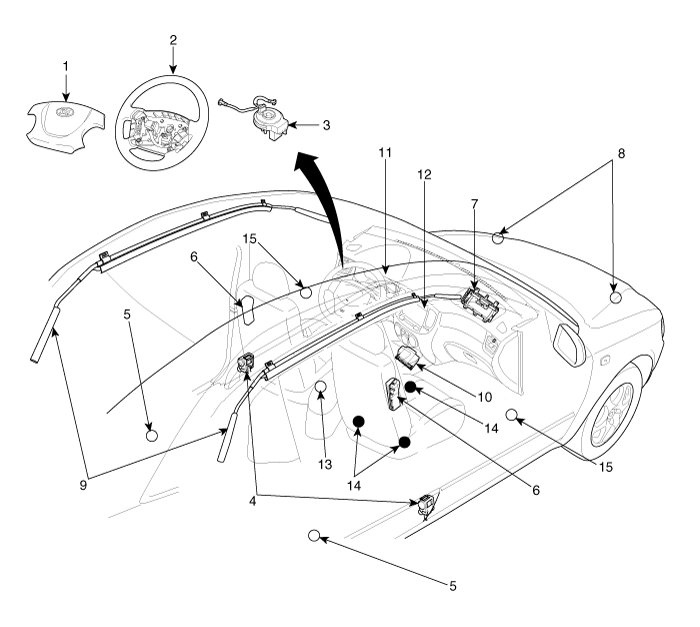

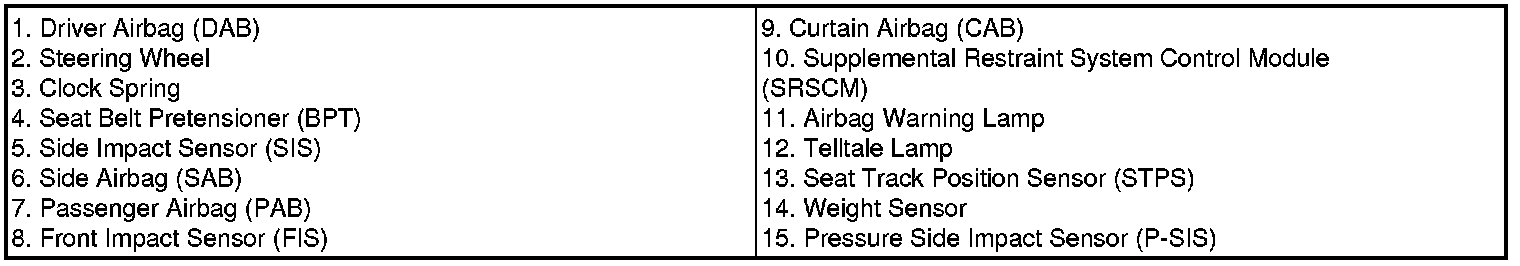

Components Location

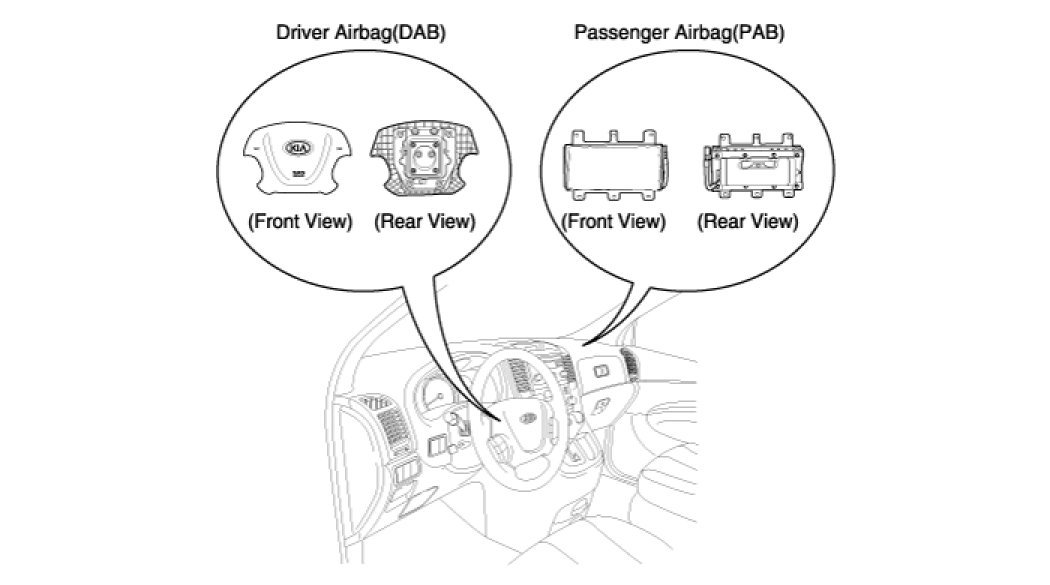

Driver Airbag (DAB) / Passenger Airbag (PAB)

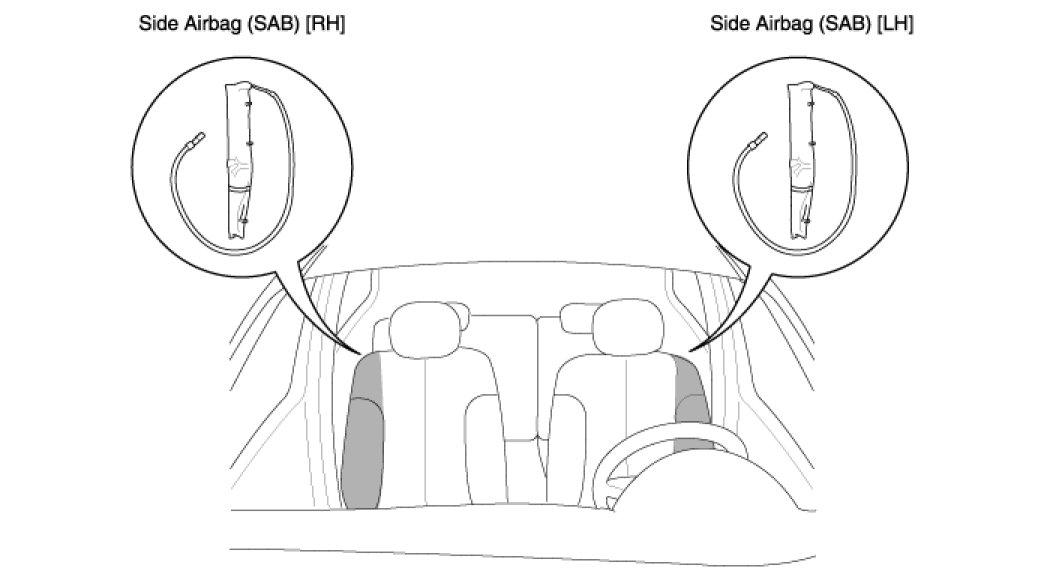

Side Airbag (SAB)

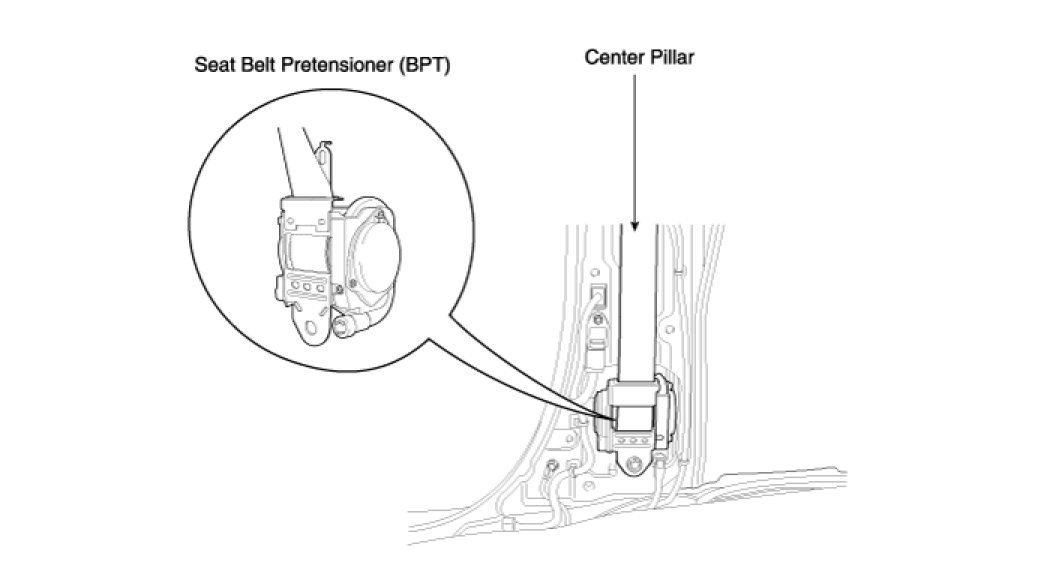

Seat Belt Pretensioner (BPT)





Front Impact Sensor (FIS)





Pressure Side Impact Sensor (P-SIS) / Side Impact Sensor (SIS)





Supplemental Restraint System Control Module (SRSCM)
