Rear Power Mosfet

INSPECTION

1. Ignition "ON".

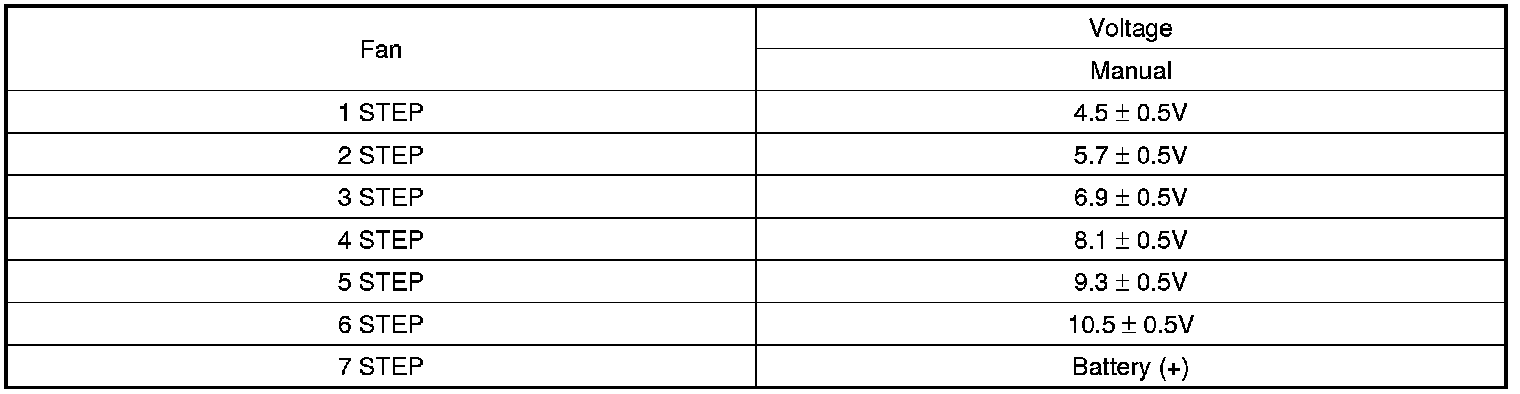

2. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
3. Select the control switch to raise voltage until high speed.









*AUTO COOLING : Auto speed (4.5V~B+)
*AUTO HEATING : Auto speed (4.5V~10.5V)

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the luggage side trim
3. Disconnect the power mosfet connector (A).
4. Remove the power mosfet (B) after loosening the mounting screws.
