Repair Procedures

REMOVAL

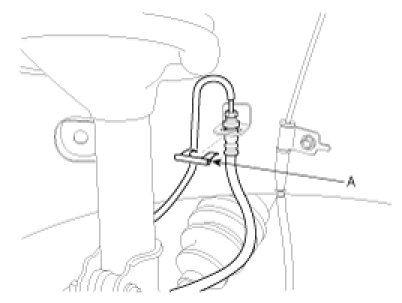

1. Remove the brake hose clip (A).




2. Loosen the brake tube (A) nut holding the brake hose (B) nut with a wrench.




3. Remove the brake hose (B).
4. Remove the brake hose connecting bolt (A) from the caliper assembly.






INSPECTION

- Check the brake tubes for cracks, crimps and corrosion.
- Check the brake hoses for cracks, damaged and oil leakage.
- Check the brake tube flare nuts for damage and oil leakage.

INSPECTION

- Check the brake tubes for cracks, crimps and corrosion.
- Check the brake hoses for cracks, damaged and oil leakage.
- Check the brake tube flare nuts for damage and oil leakage.

INSTALLATION

1. Install the brake hose (A) connecting bolt (B) and washer (C).




2. Tighten the brake tube (A) nut holding the brake hose (B) nut with a wrench.




3. Install the brake hose clip (A).




4. After installation, breed the air in the brake system.

CAUTION:
Be careful not to damage the brake hose by sharp edges or tools.
