Anti-Lock Brake System (ABS)

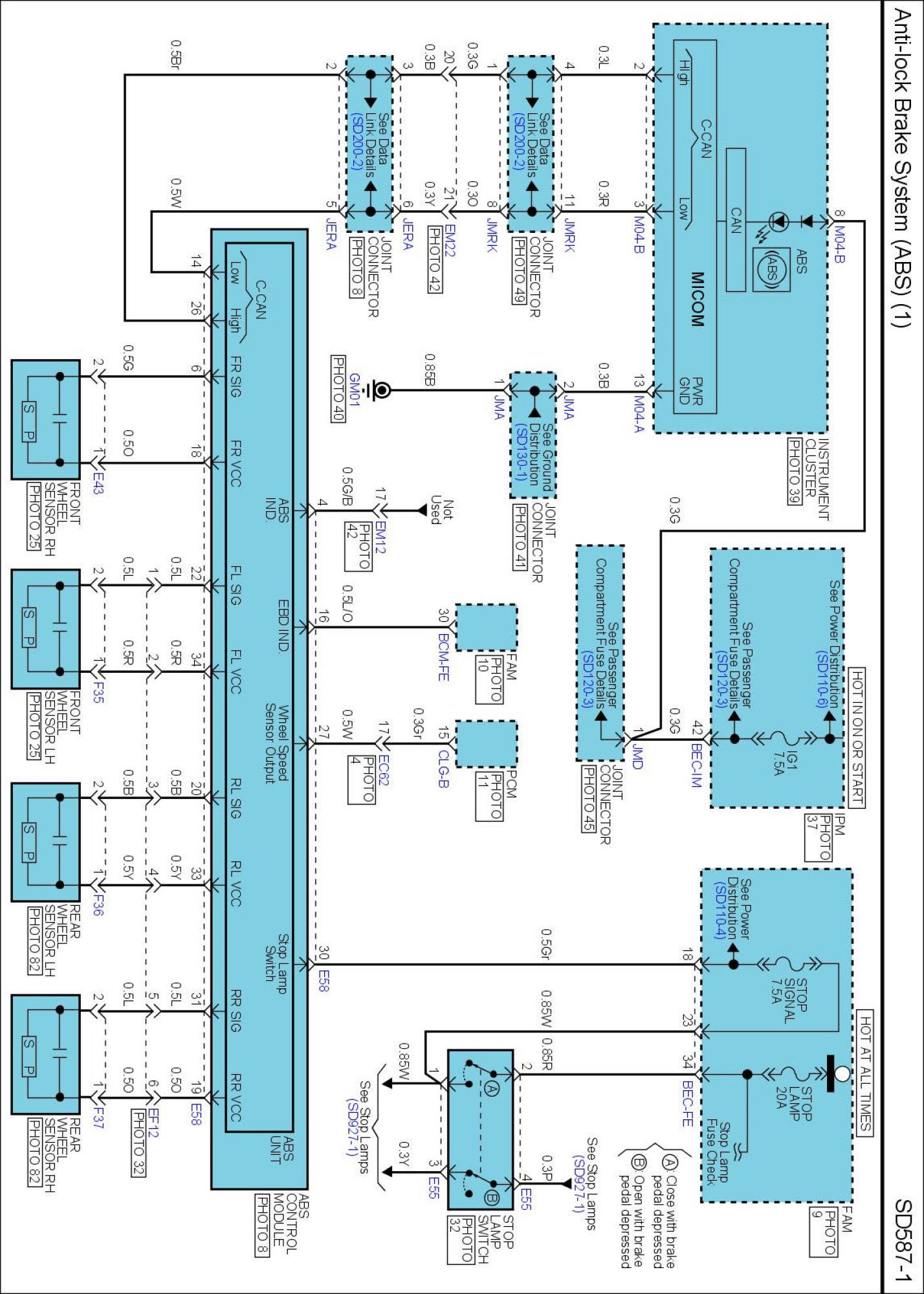

SD587-1 Anti-lock Brake System (ABS) (1):

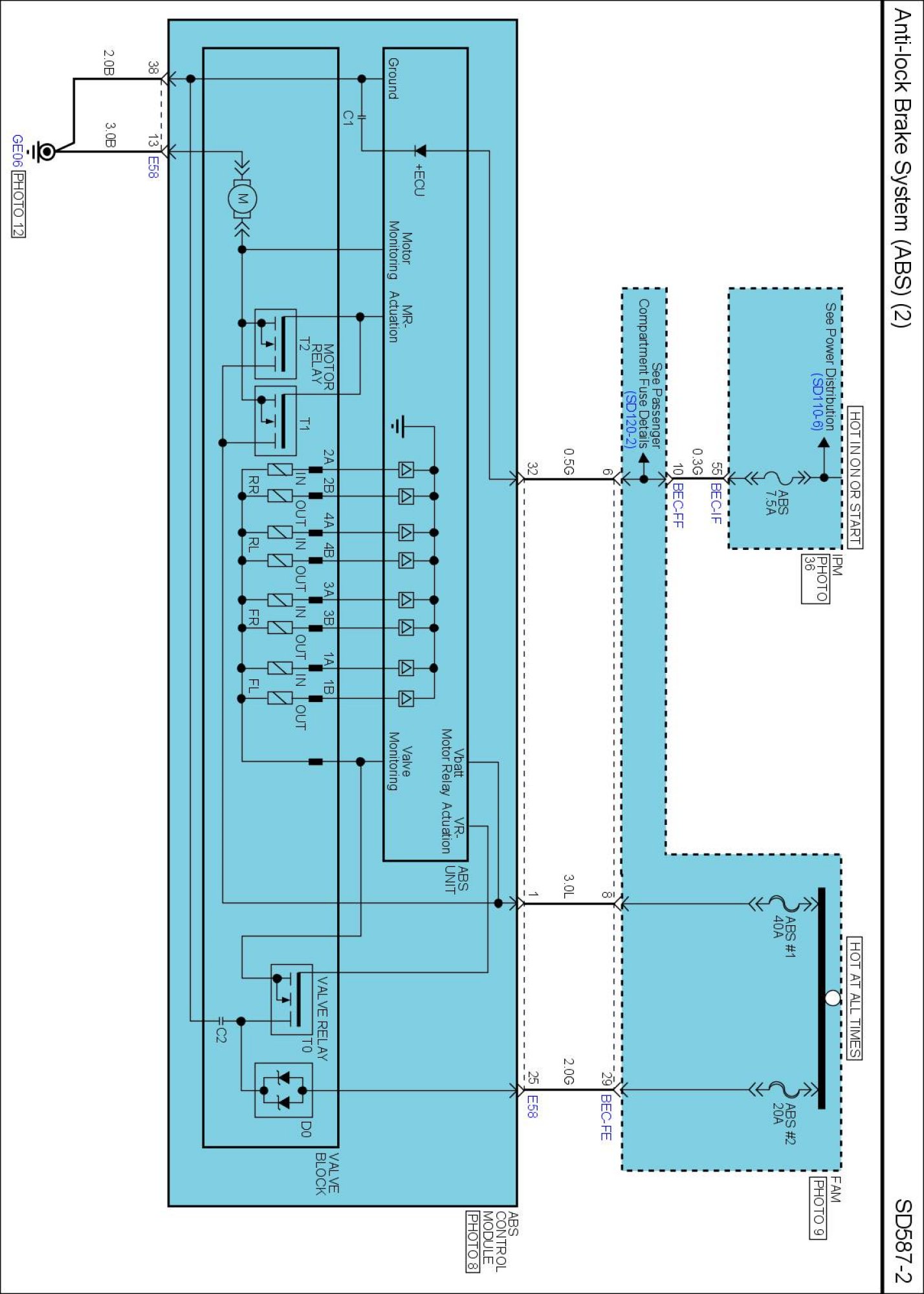

SD587-2 Anti-lock Brake System (ABS) (2):

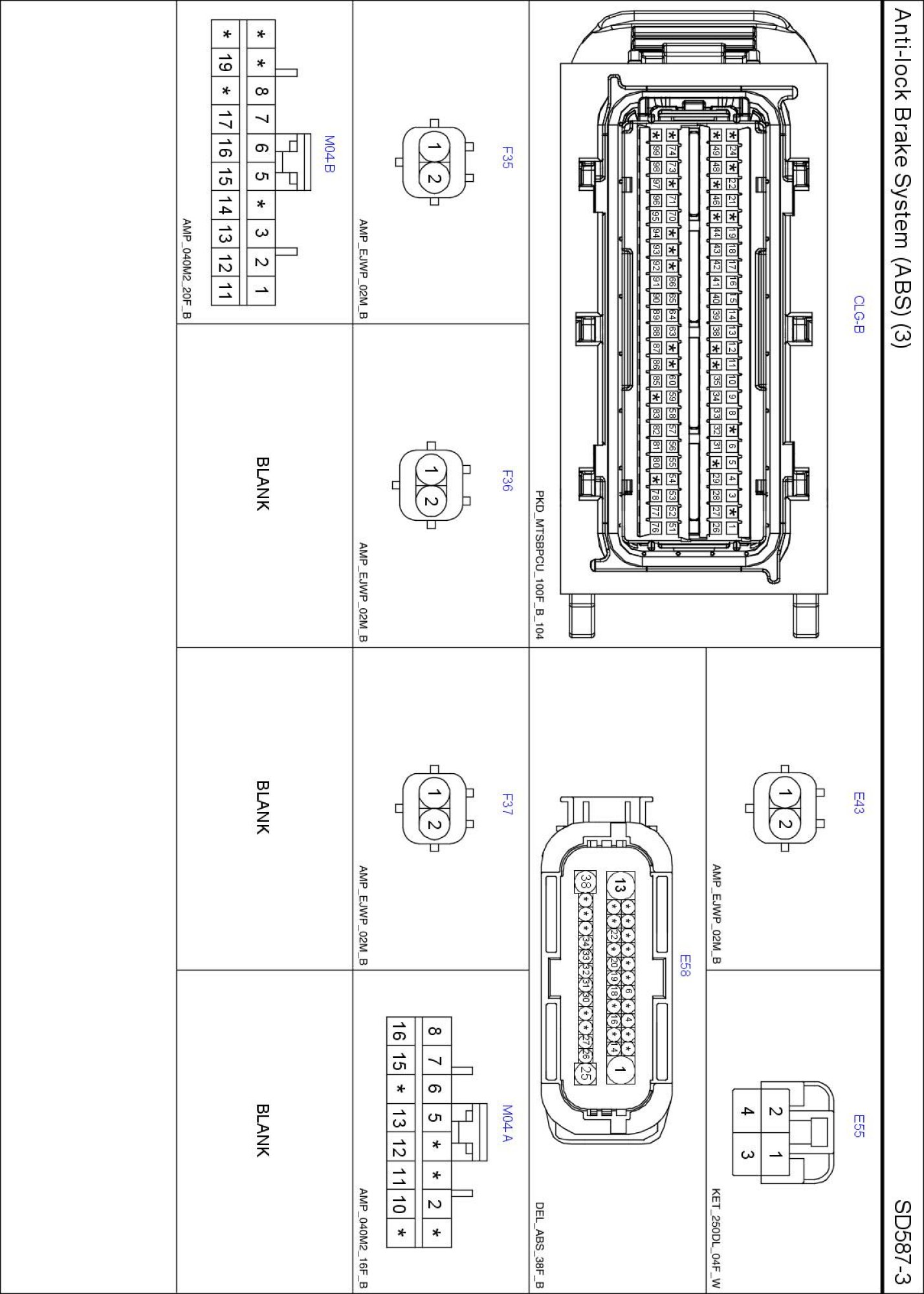

Anti-lock Brake System (ABS) (3) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
