General Information

P0705 Transmission Range Sensor Circuit Malfunction

General Information

Component Location





General Description

Shift lever positions P-range (Parking), R-range (Reverse), N-range (Neutral) and D-range (Driving) are changed by driver need and lever position is sent to PCM/TCM to control a gear ration.

DTC Description

This code is set when undefined code is input to PCM/TCM without specific of transmission pattern table.

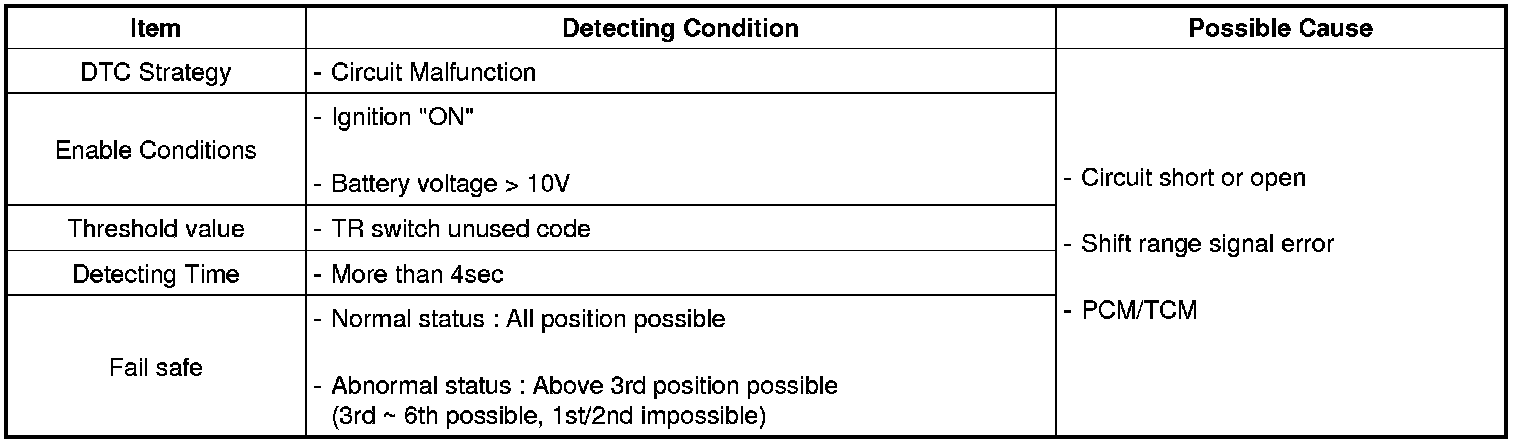

DTC Detecting Condition

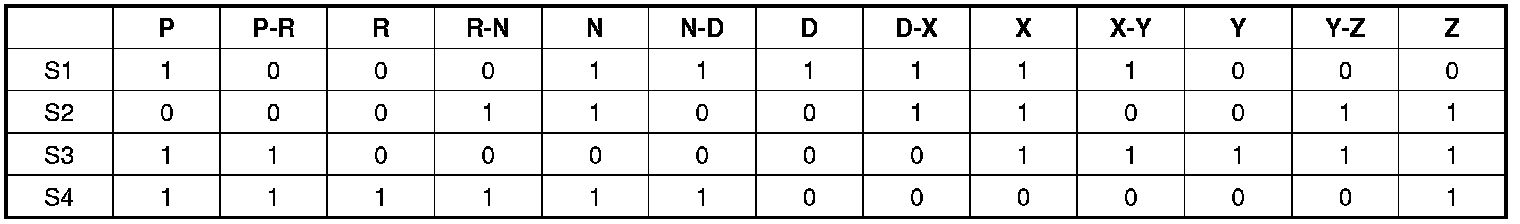

Specification





Diagnostic Circuit Diagram





Signal Waveform & Data
