P0562 System Voltage Low

General Information

Component Location





General Description

The PCM provides ground to one side of the coil of the main relay and the other side is connected to the battery. The PCM monitors battery voltage and the voltage after the main relay.

DTC Description

During engine running, if system voltage is below 11 V or the battery power input line has a problem, PCM sets P0562.

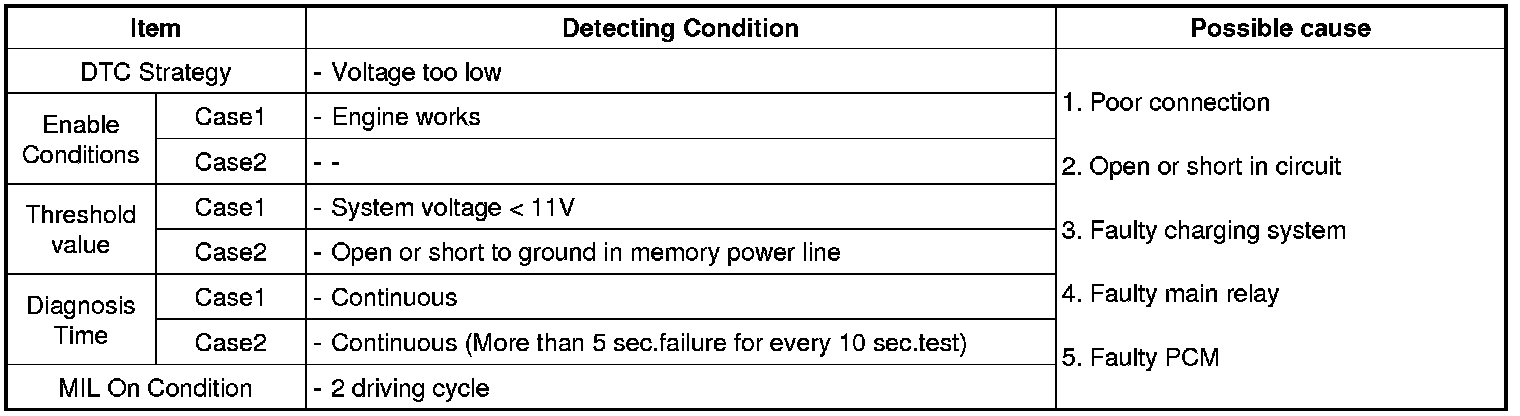

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram





Signal Waveform & Data

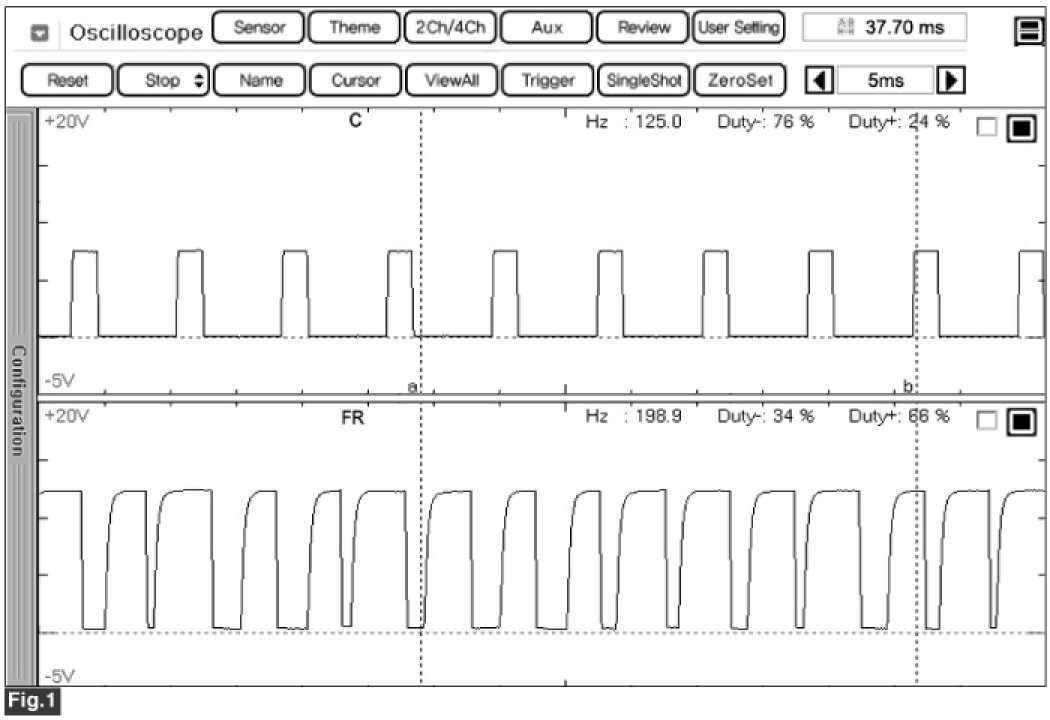

Fig.1) Normal waveforms of COM, FR terminal of alternator at idle.

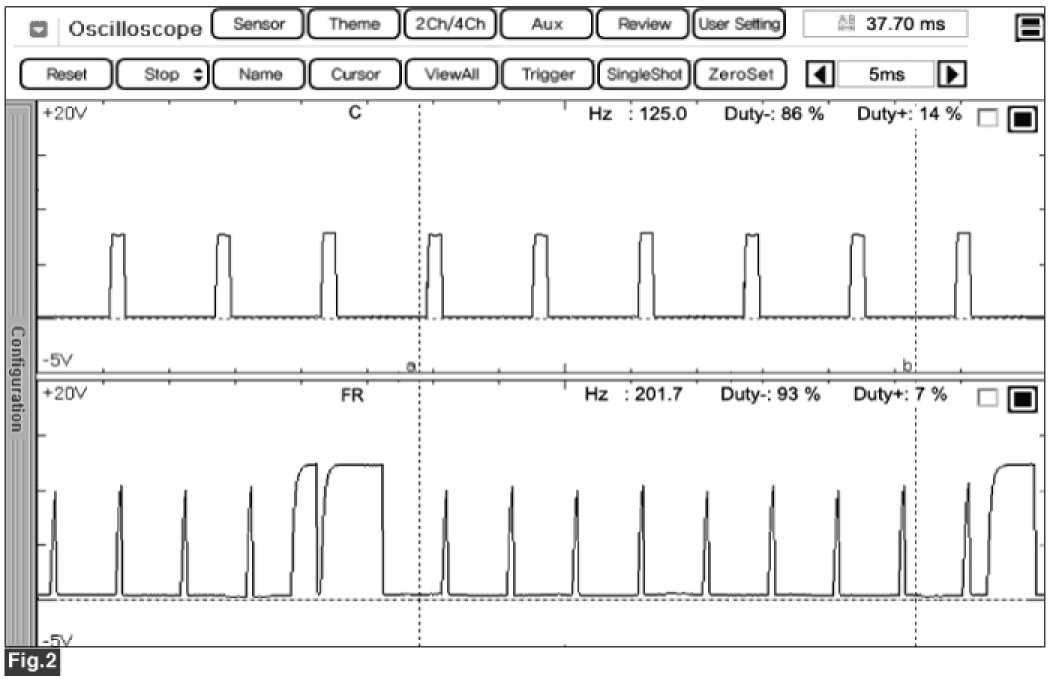

Fig.2) Normal waveforms of COM, FR terminal of alternator under high electronic load condition
