General Information

P0454 Evaporative Emission System-Pressure Sensor Intermittent

General Information

Component Location





General Description

The evaporative emission control system prevents hydrocarbon vapors from escaping from the fuel tank into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The Fuel Tank Pressure Sensor (FTPS) is an integral part of the evaporative monitoring system. The PCM monitors the FTPS signal to detect vacuum decay and excess vacuum. The FTPS measures the difference between the air pressure inside the fuel tank and outside air pressure to check the purge control solenoid valve operation and for leak detection in the evaporative emission control system by monitoring pressure and vacuum levels in the fuel tank during the purge control solenoid valve operating cycles.

DTC Description

Checking output signals from FTPS under detecting condition, if the FTPS indicates pressure momentarily increased more than 5.6 reading displaying on scantool, PCM sets P0454. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

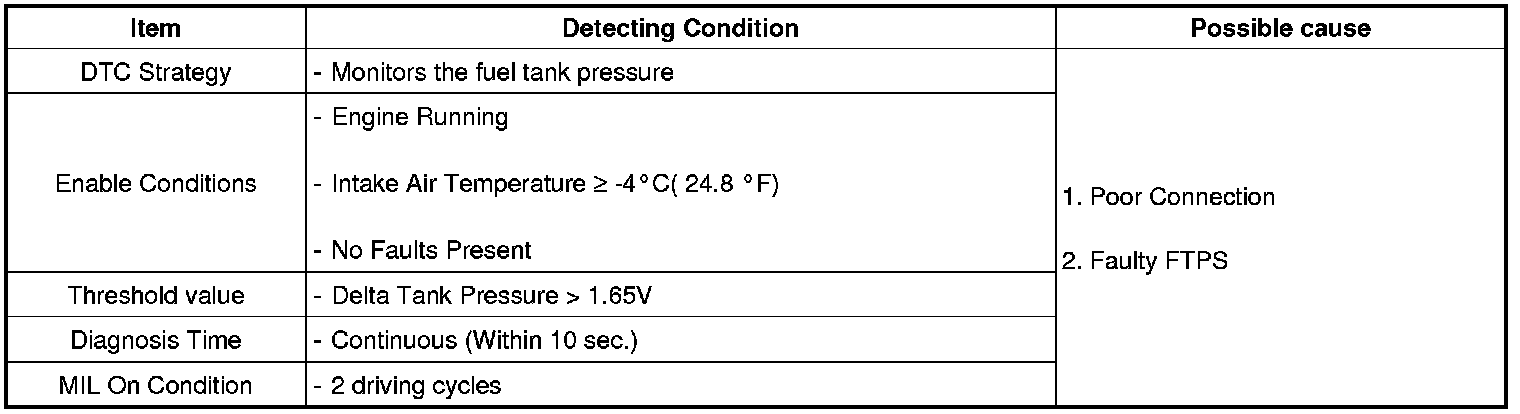

DTC Detecting Condition

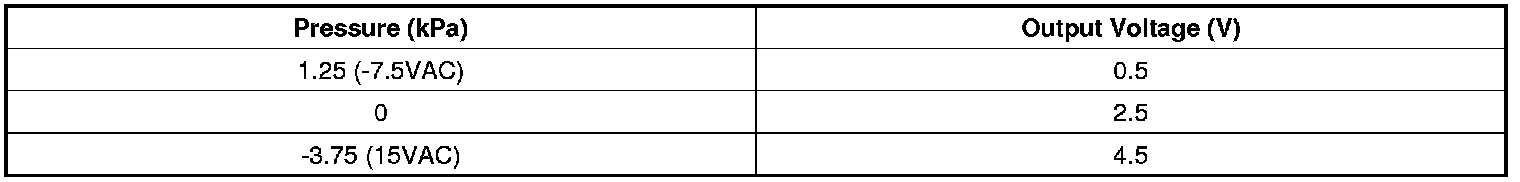

Specification





Diagnostic Circuit Diagram





Signal Waveform & Data








Fig.1) Normal data of FTPS at idle.
Fig.2) Abnormal data & waveform of FTPS when FTPS connector disconnected.
