Component Inspection

P0448 Evaporative Emission System

Vent Control Circuit Shorted - Inspection/Repair:_:Component Inspection

Component Inspection

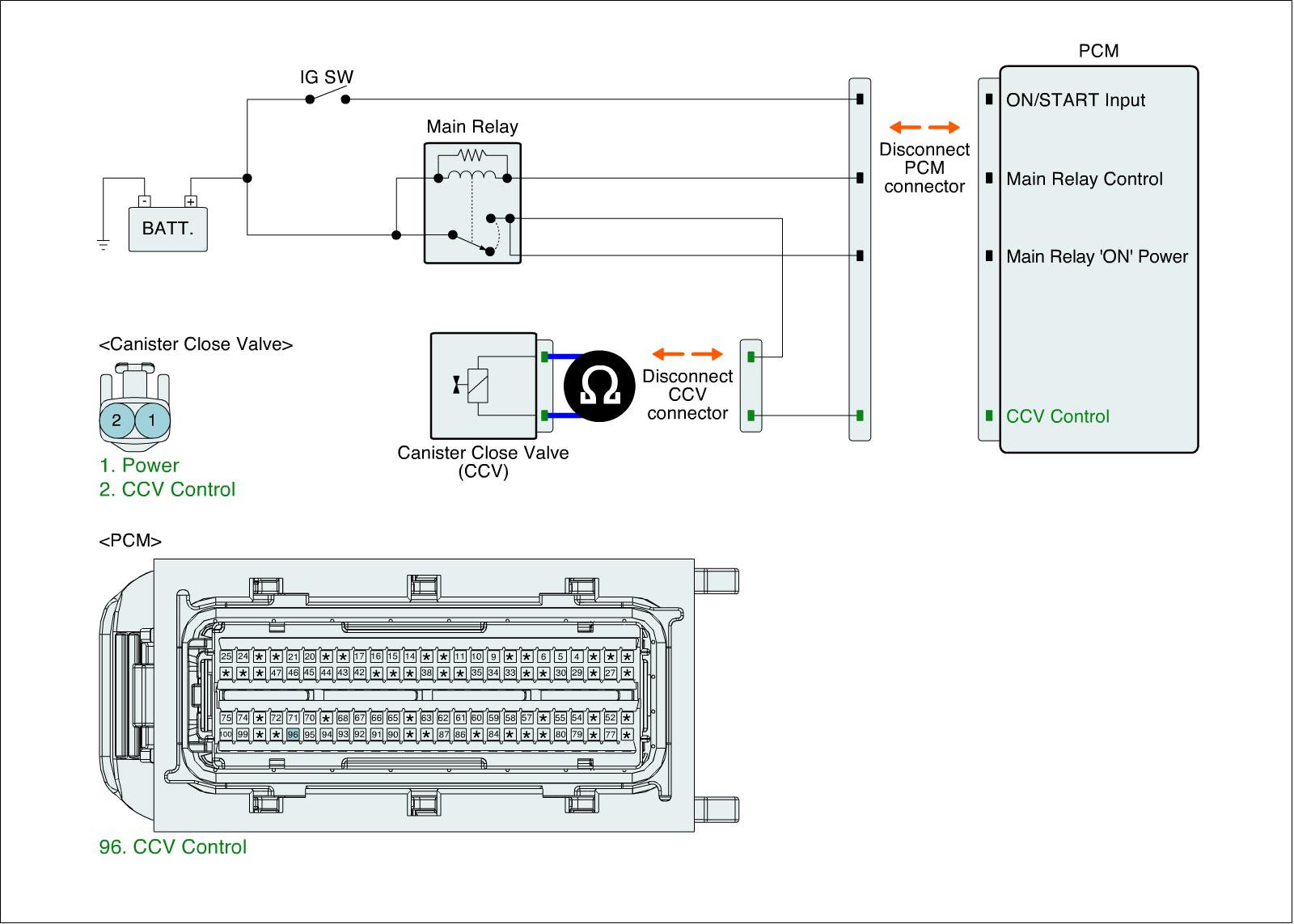

Check CCV
1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector. (Component side)

Specification : 19.8 - 21.8 Ohms (20 °C (68 °F))

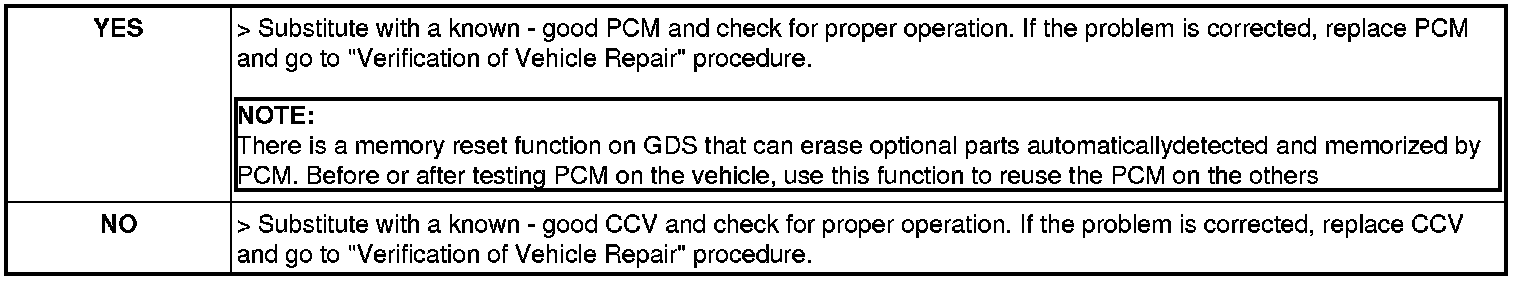

3. Is the measured resistance within specification?
