General Information

P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted

General Information

Component Location





General Description

The Evaporative Emission Control System (EVAP) prevents hydrocarbon (HC) vapors in the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The Purge Control Solenoid Valve (PCSV) is actuated (duty cycled) by the Powertrain Control Module (PCM) to control vapor flow from the canister to the intake manifold.

DTC Description

Checking output signals from PCSV every 10 sec. under detecting condition, if signals indicating short to battery in the circuit are detected for more than 5 sec., PCM sets P0445.

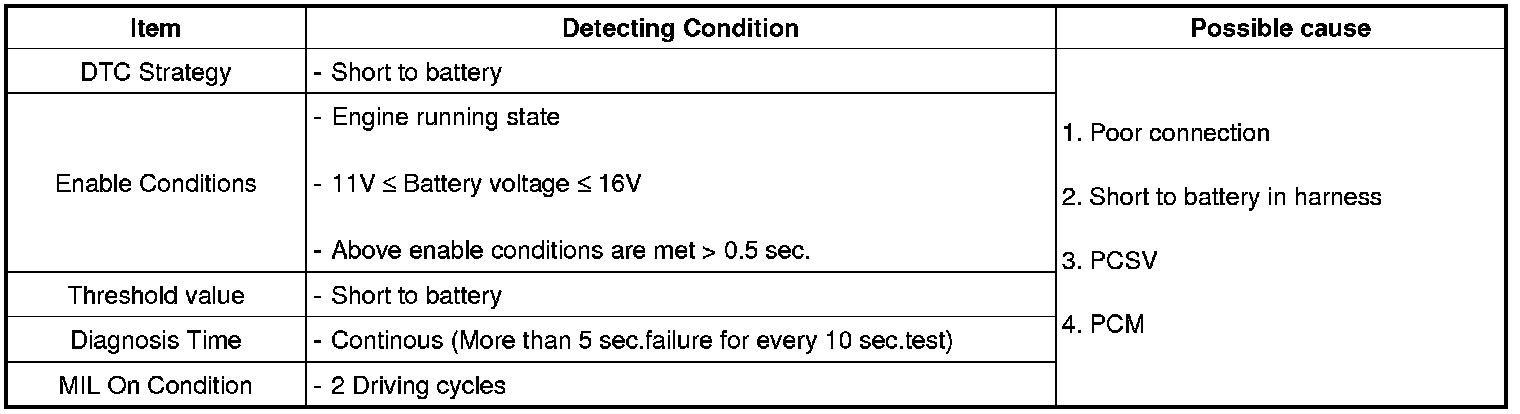

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram





Signal Waveform & Data




Fig.1) Normal waveform of PCSV under 27% control condition.

The Purge Control Solenoid Valve (PCSV) is open or closed by PCM and vacuum of intake manifold.
At opening, fuel vapor from canister enters into intake manifold. To prevent vacuum from forming inside canister, PCM controls to open it. This photo shows the signal waveform of PCSV operating normally.
