Component Inspection

P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted

Inspection/Repair - Component Inspection

Component Inspection

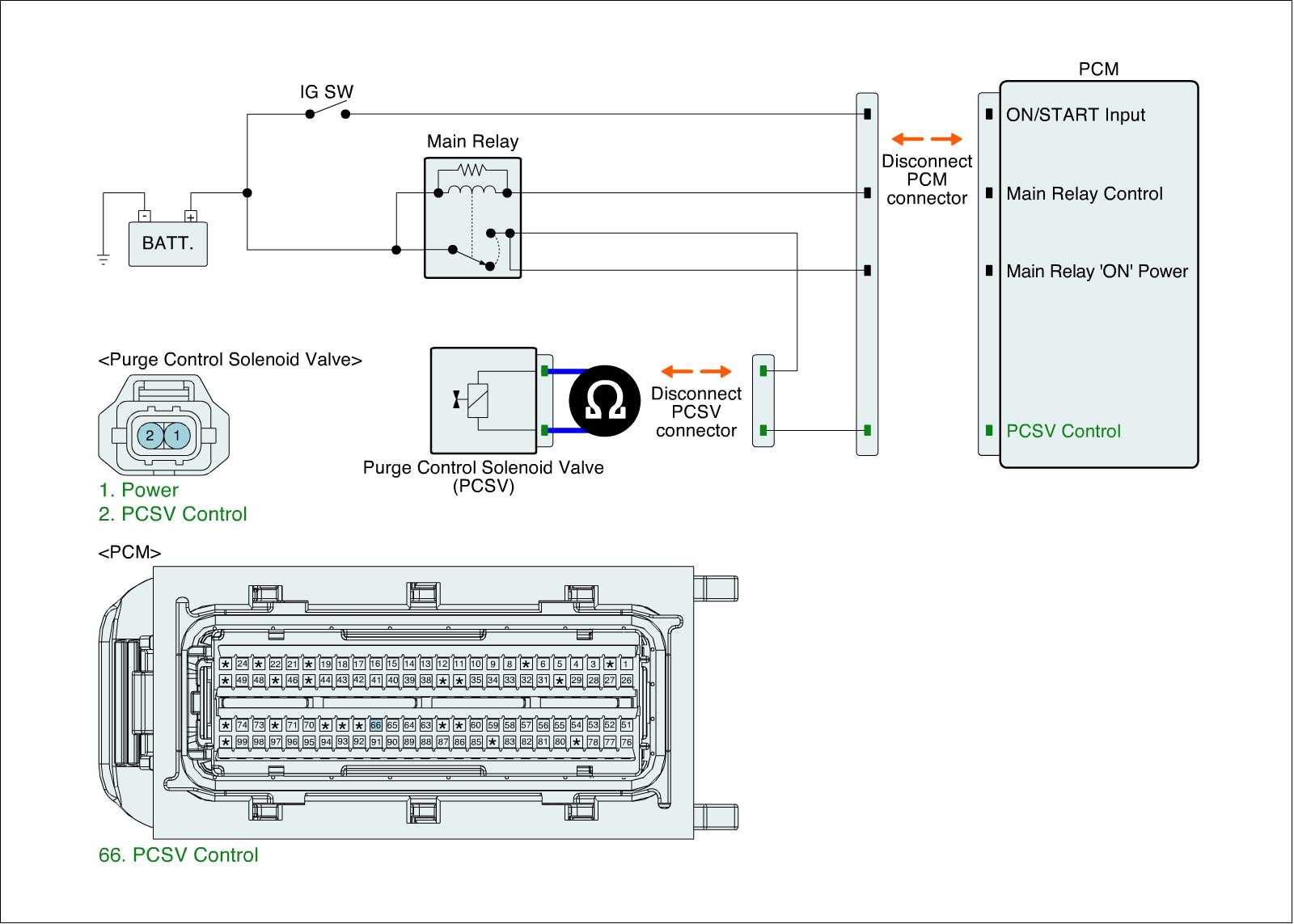

Check PCSV
1. IG "OFF" and disconnect PCSV connector.
2. Measure resistance between power and control terminals of PCSV connector. (Component side)

Specification : 22.0 - 26.0 Ohms [20 °C (68 °F)]

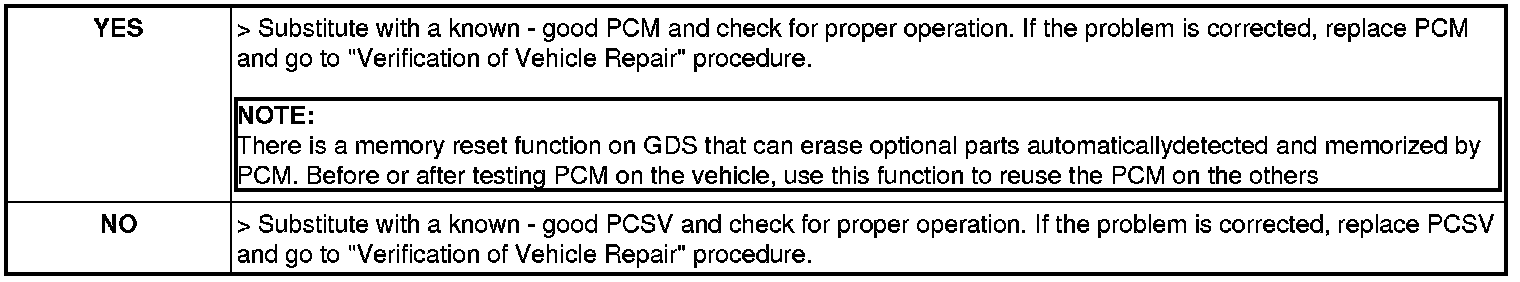

3. Is the measured signal waveform normal?
