General Information

P0391 Camshaft Position Sensor 'B' Circuit Range/Performance (Bank 2)

General Information

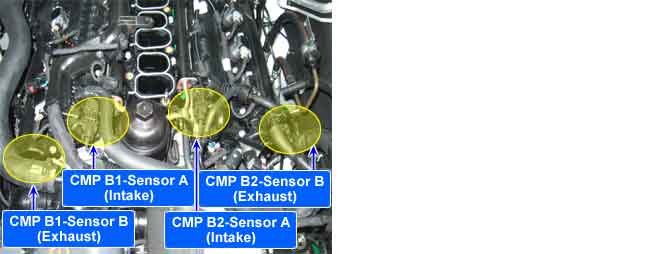

Component Location





General Description

The Camshaft Position Sensor (CMPS) is a sensor that detects the compression TDC of the NO. 1 cylinder. The CMPS consists of a hall type sensor and a target on the end of the intake camshaft. When the target triggers the sensor, the sensor voltage is 5 V. If not, the sensor voltage is 0 V. These CMPS signal is sent to the PCM and the PCM uses the CMPS signal for synchronizing the firing of sequential fuel injectors.

DTC Description

Checking output signals from CMP during engine running, if the expected number of cam tooth count is not observed, PCM sets P0391.

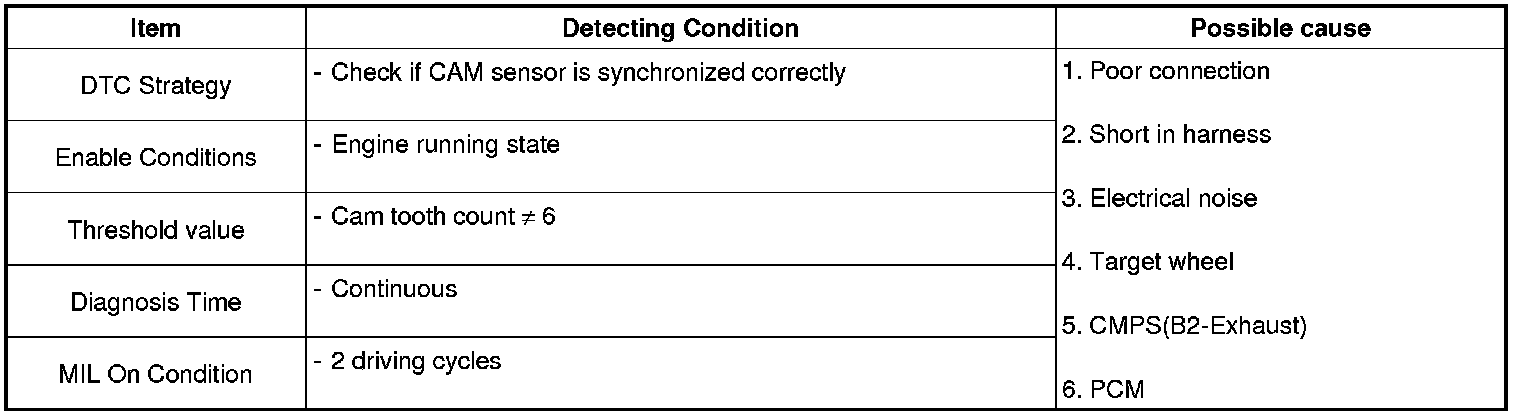

DTC Detecting Condition

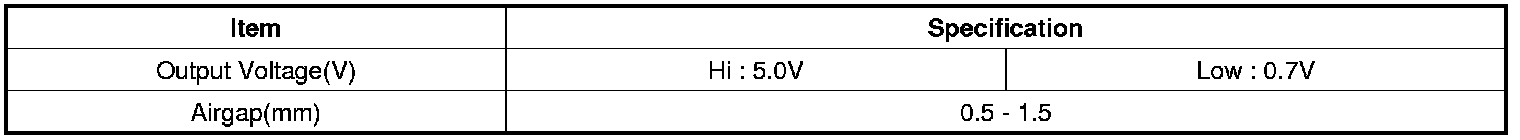

Specification

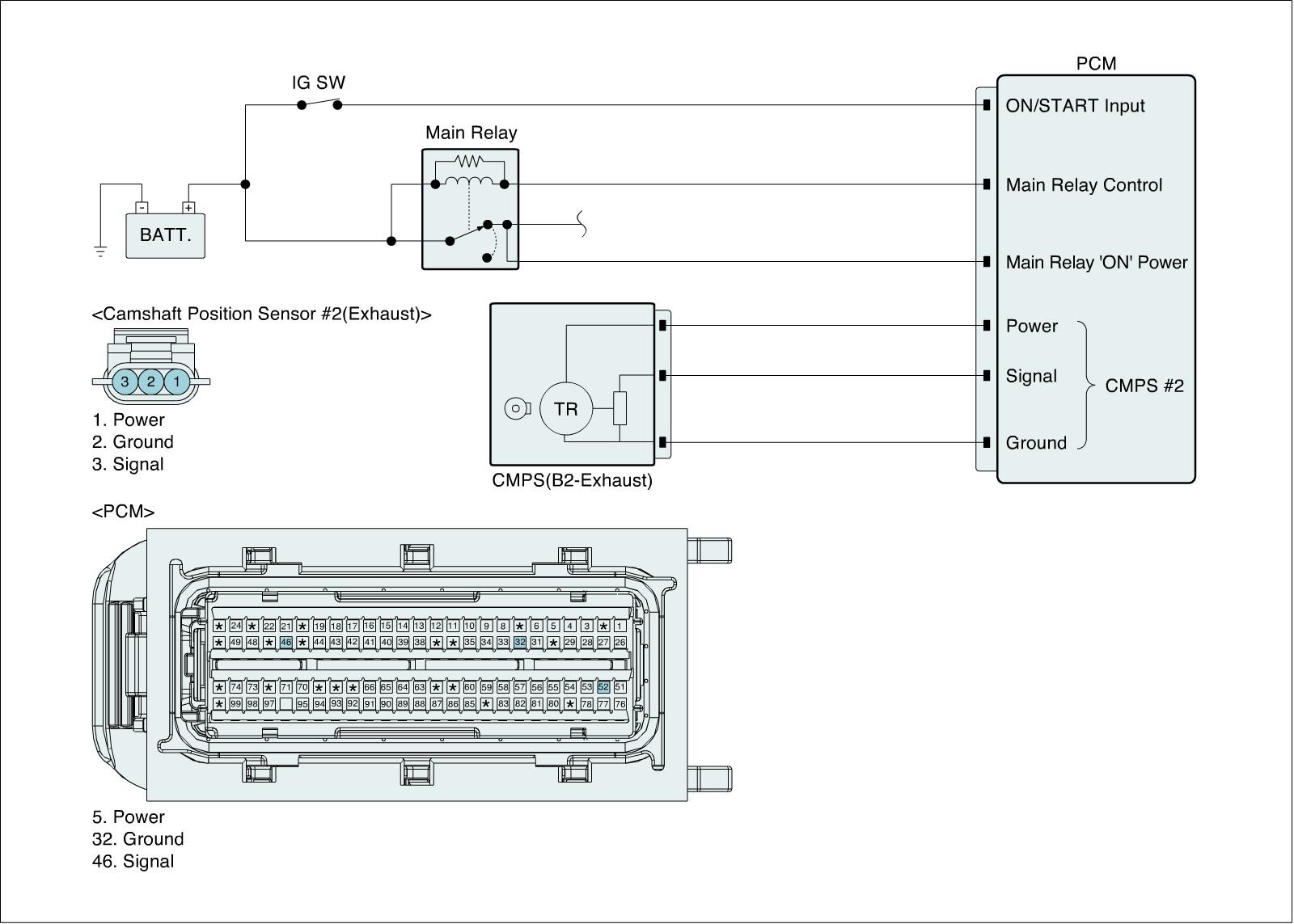

Diagnostic Circuit Diagram





Signal Waveform & Data

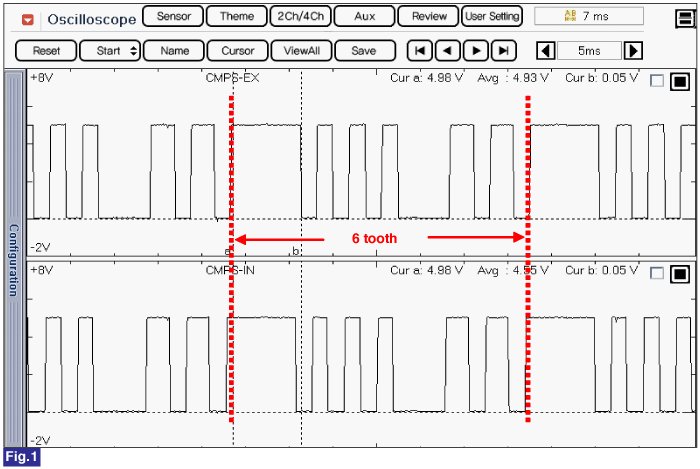

Fig.1) Normal waveforms of CMPS
