Component Inspection

P0336 Crankshaft Position Sensor 'A' Circuit Range/Performance

Inspection/Repair - Component Inspection

Component Inspection

Visually check CKPS and target wheel
1. IG "OFF"
2. Check CKPS and target wheel for deformation or damage visually

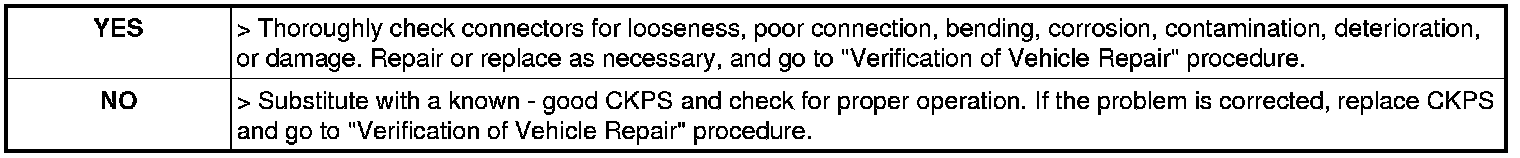

3. Is the above items normal?





Check CKPS
1. IG "OFF" and disconnect CKPS connector.
2. Measure resistance between low signal and high signal terminals of CKPS connector. (Component side)

Specification : 774 - 946 Ohms [20 °C (68 °F)]

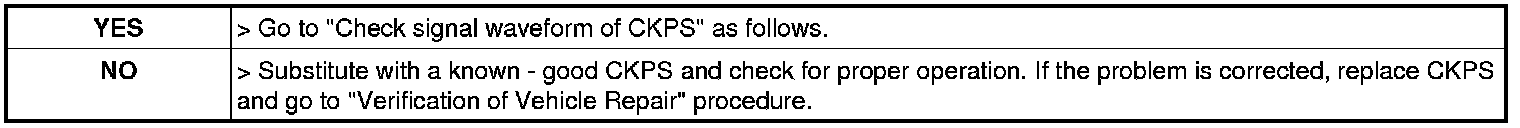

3. Is the measured signal waveform normal?





Check signal waveform of CKPS
1. IG "OFF" and connect GDS.
2. ENG "ON" and Measure signal waveform at signal terminal of CKPS.




Fig.1) Normal waveforms of CKPS & CMPS




3. Is the measured signal waveform normal?
