Component Inspection

P0335 Crankshaft Position Sensor 'A' Circuit

Inspection/Repair - Component Inspection

Component Inspection

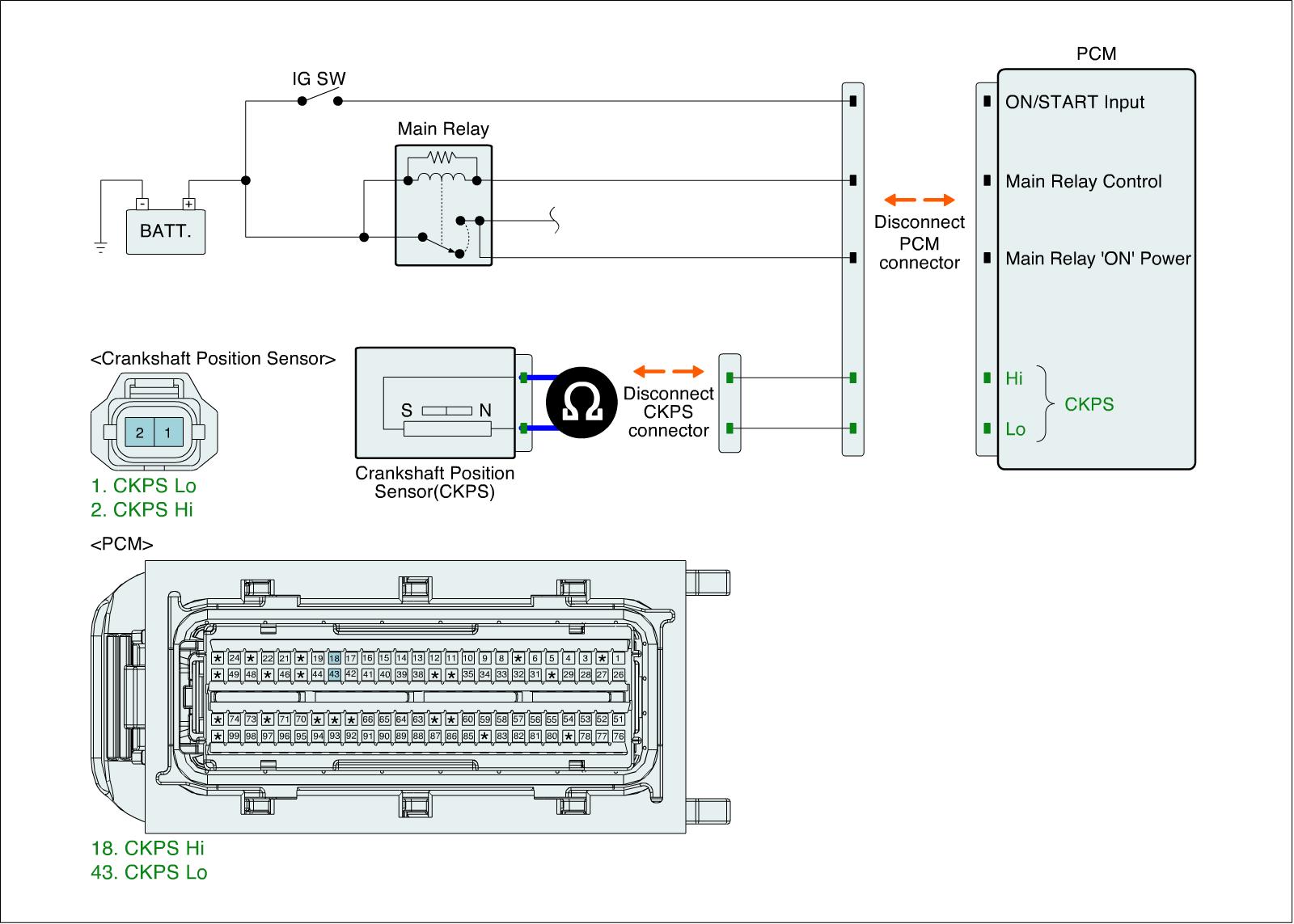

Check CKPS
1. IG "OFF" and disconnect CKPS connector.
2. Measure resistance between low signal and high signal terminals of CKPS connector. (Component side)

Specification : 774 - 946 Ohms [20 °C (68 °F)]

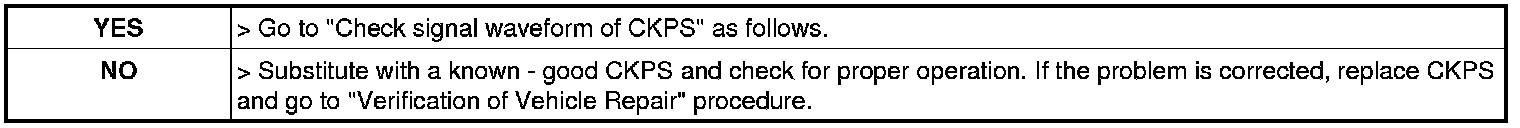

3. Is the measured resistance within specification?

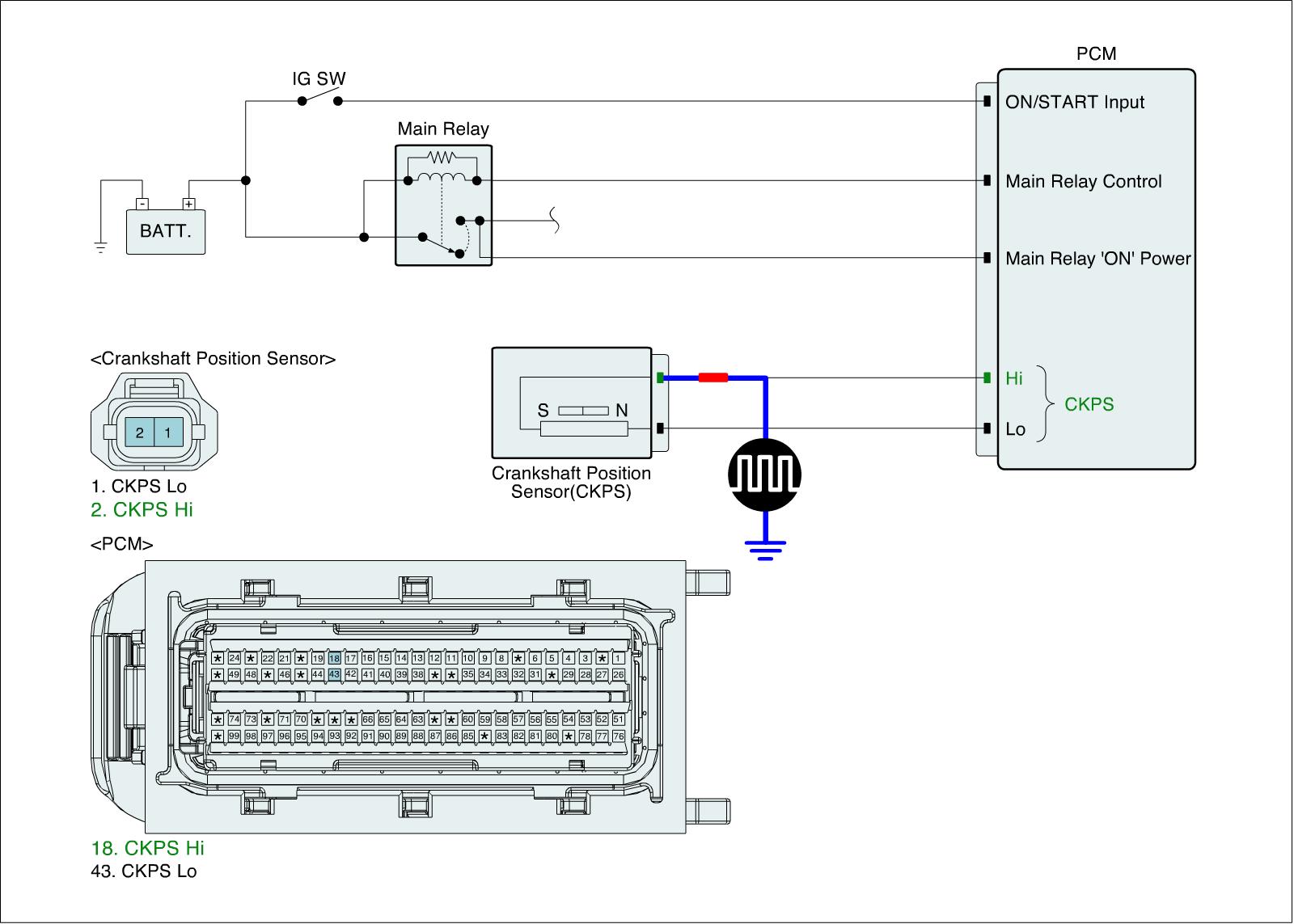

Check signal waveform of CKPS
1. IG "OFF" and connect GDS.
2. NG "ON" and Measure signal waveform at signal terminal of CKPS.




Fig.1) Normal waveforms of CKPS & CMPS

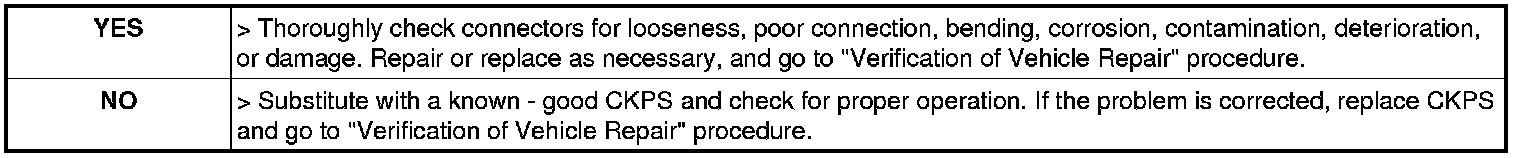

3. Is the measured signal waveform normal?
