Component Inspection

P0112 Intake Air Temperature Sensor 1 Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

Check IATS resistance
1. IG "OFF" and disconnect IATS connector.
2. Measure resistance between signal and ground terminals of IATS connector after checking out the temperature of IATS with GDS. (Component Side)

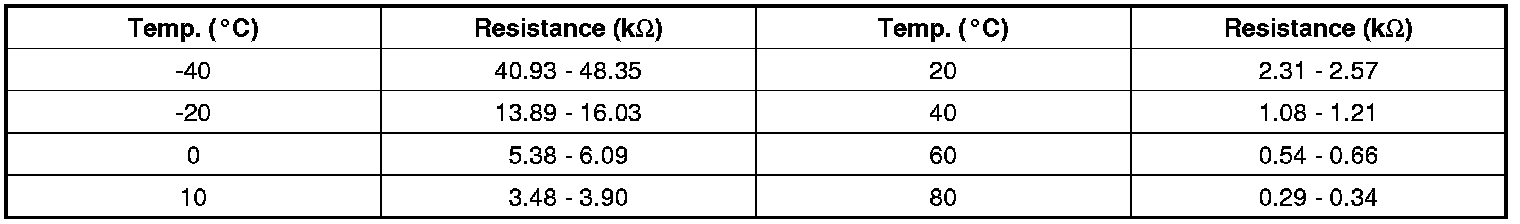

Specification :

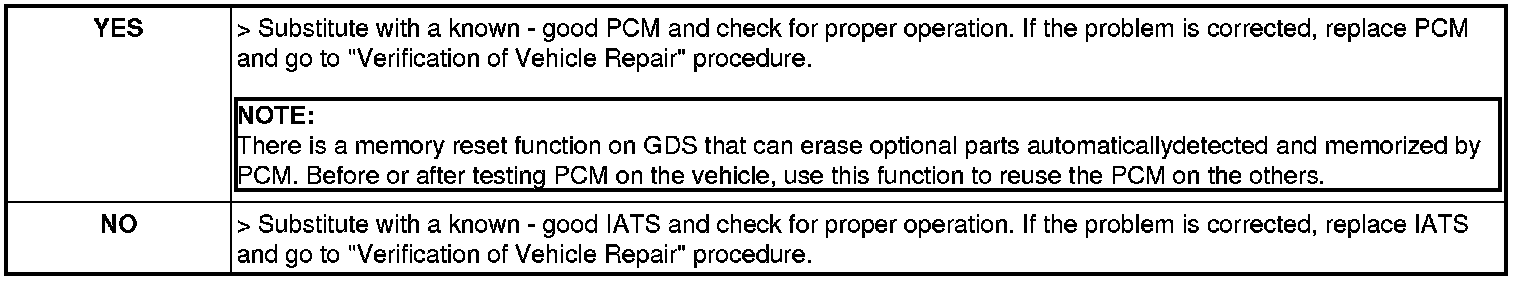

3. Is the measured resistance within specification?
