Scantool Diagnostics

C1320 Sensor 4 Wrong Type Installed

Scantool Diagnostics

Monitor GDS Data

1. Place TPMS Exciter within 10 cm of the tire's sensor which will be measured.
2. Check a sensor's ID out of sensor's information.

Measuring method :Refer to No.1 Measurement




NO.1) A method of checking a sensor ID with TPMS Exciter TPMS Exciter within 10 cm of the tire's sensor which will be measured

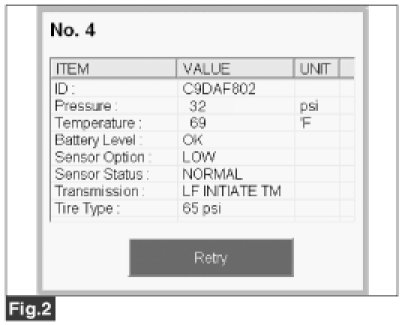

Fig.1) Data displayed by TPMS ECU

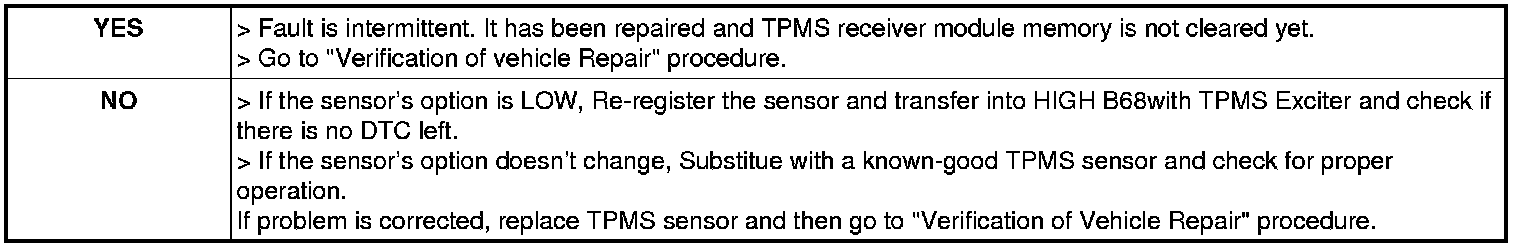

3. Is parameter within specifications?
