Component Inspection

C1301 Unmonitored Tire Installed

Inspection/Repair - Component Inspection

Component Inspection

** Before diagnostic troubleshooting, Check if there is the WE sensor installed in the tire.
1. Set up 'GDS' with 'GDS TPMS'.
2. Select "Vehicle S/W Management" function.

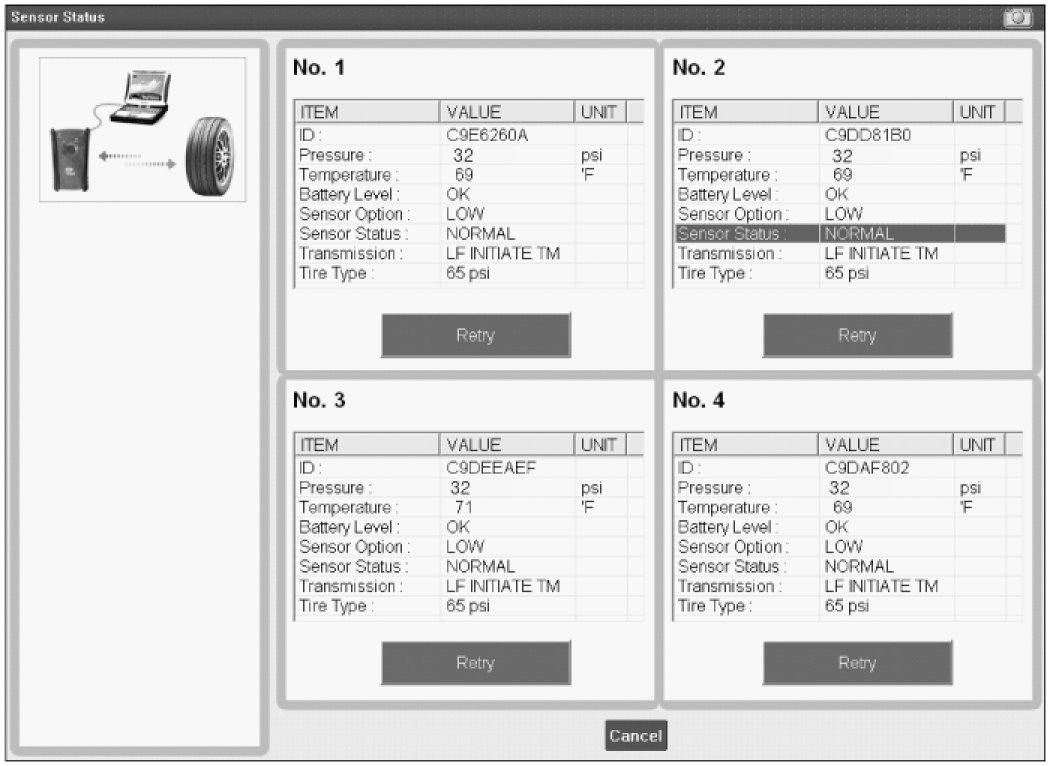

3. Select the "Sensor Status" mode of "Data Treatment" item.
4. Monitor the parameter of "ID" on the screen.

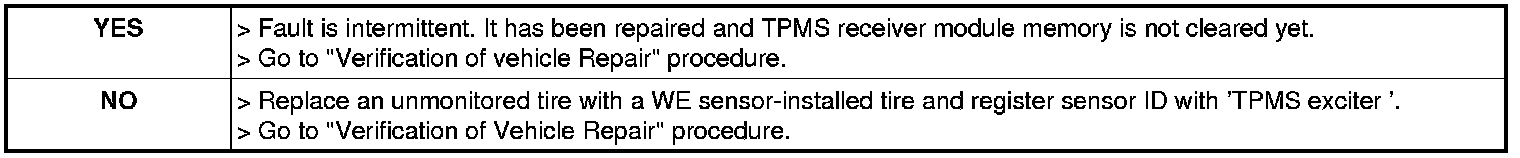

5. Is the current data displayed normally?
