C1301 Unmonitored Tire Installed

General Information

Component Location





General Description

The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU (or TPMS Receiver) and TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF (Radio Frequency) at a frequency.

DTC Description

When a vehicle is driving, the TPMS ECU gets signals that it stops from WE sensor. At this time, the TPMS ECU sets this DTC.

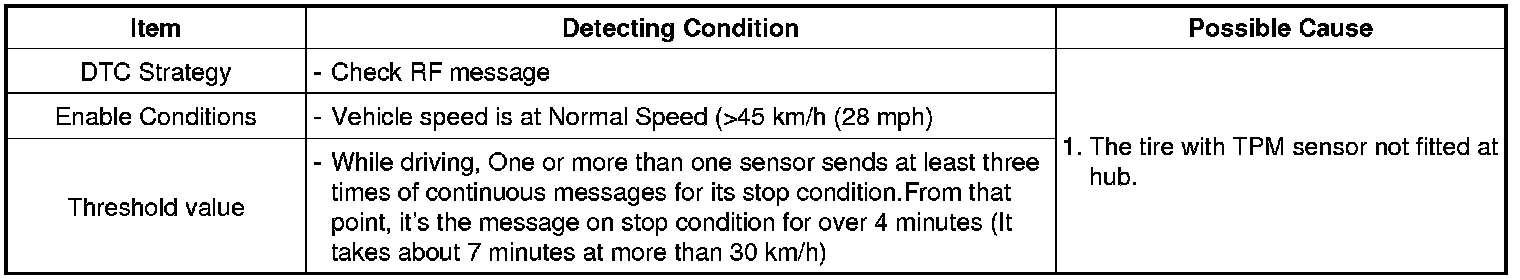

DTC Detecting Condition
