Component Inspection

B2425 Pinch Strip Open or Stuck High

Inspection/Repair - Component Inspection

Component Inspection

1. Check APS
1. Ignition "ON" & engine "OFF"
2. Disconnect APS

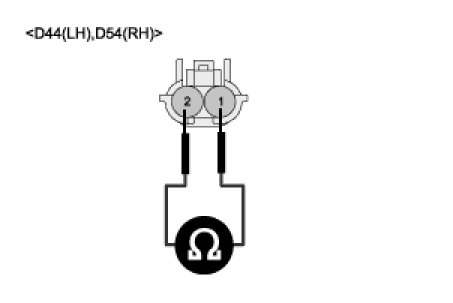

3. Measure resistance between terminal 1 and 2 of APS.
A. Specification : Anti pinch "ON" -> 500 Ohms, "OFF" -> 6.2 kOhms




4. Is the measured resistance within specifications?
YES
1) Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Substitute with a known-good APS and check for proper operation.
If the problem is corrected, replace APS and then go to "Verification of Vehicle Repair" procedure.
