General Information

B1910 Left OSM Horizontal Motor or Sensor Error

General Information

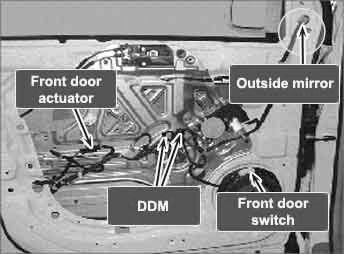

Component Location





General Description

DDM is a node of CAN communication system which consists of IPM. FAM, RAM, ADM, IMS. Main function of DDM is lock/unlock of door and window, adjusting position and fold/unfold of outside mirror. Outside mirror module consists of motor and position sensor. According to Outside mirror Switch signal, Outside mirror motor adjusts position of mirror and position sensor delivers result to DDM by voltage value

DTC Description

The ECM sets DTC B1910 if signal voltage of left outside mirror horizontal sensor is out of range.

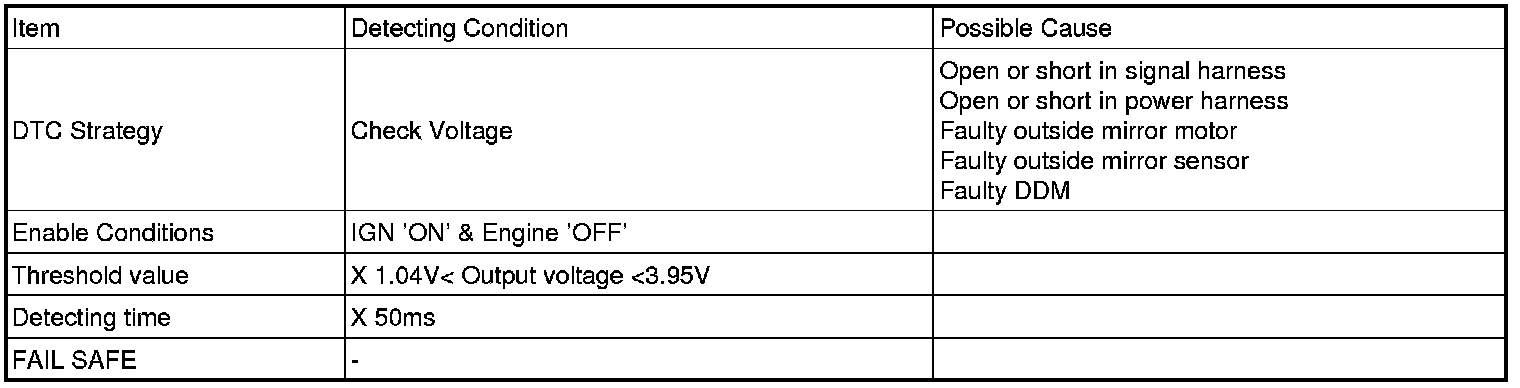

DTC Detecting Condition

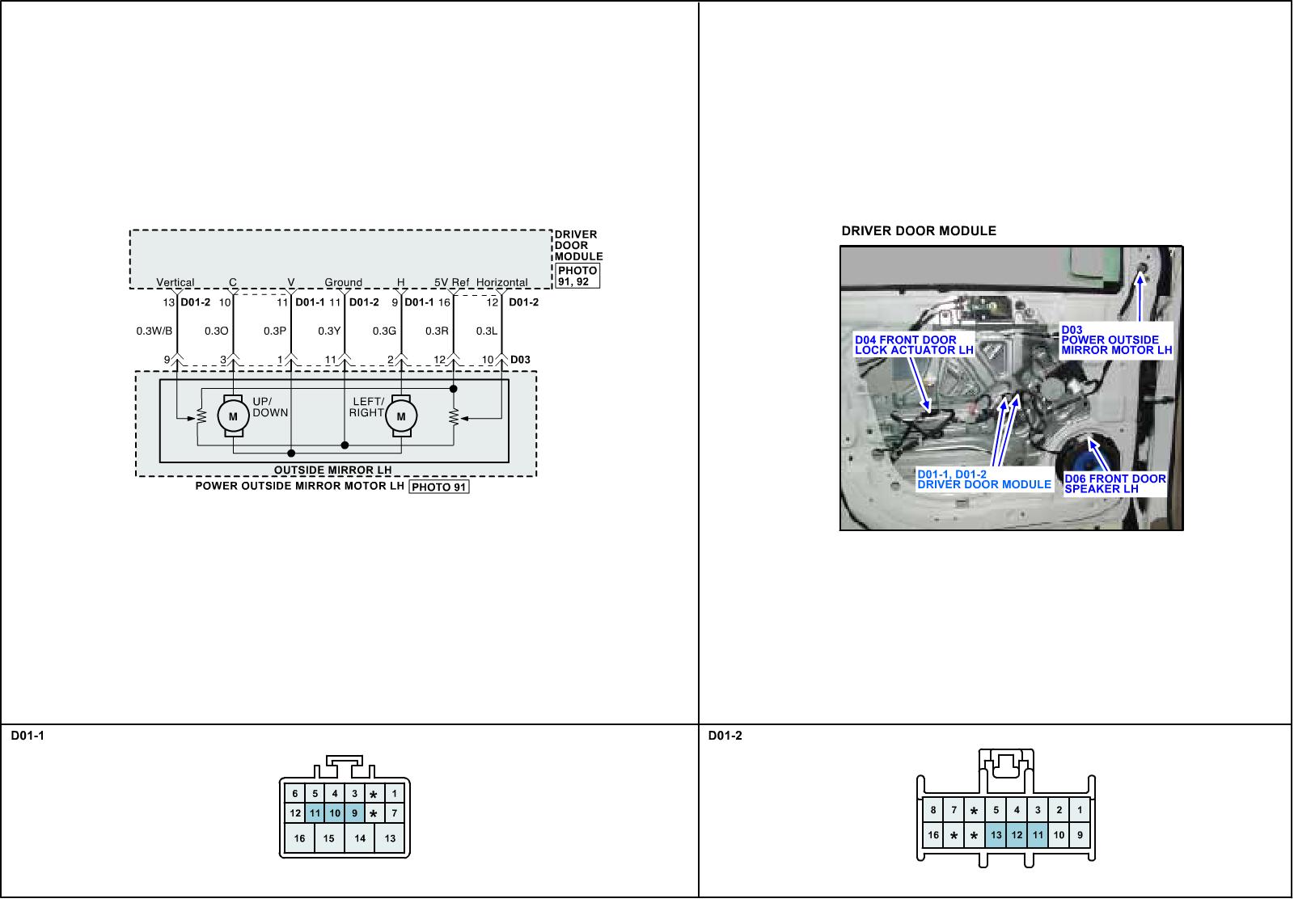

Schematic Diagram
