B1605 Lost Communication With DDM, Bbus Failure

General Information

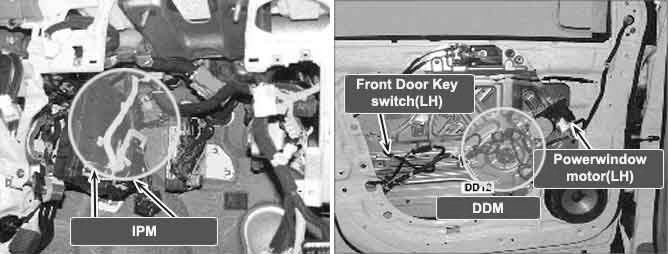

Component Location





General Description

To make system be more efficient, Body Control Module (here in after referred to BCM) applies CAN (Controller Area Network) communication system. CAN is a kind of communication system which can make related component share system information with just two line instead of complex individual signal line. It consists of related component and CAN BUS which consists of CAN_high line and CAN_low line. Each component can send and receive information by binary signal via CAN BUS. The related components for BCM are IPM, ADM, DDM, FAM, RAM, IMS and cluster module.

DTC Description

The ECM sets DTC B1605 if FAM haven't transmitted DATA for 10 sec in normal CAN communicating.

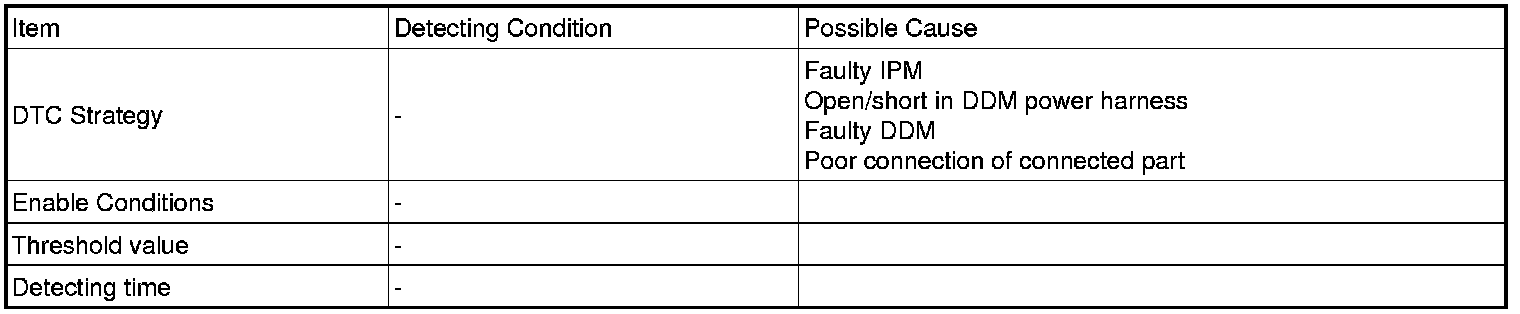

DTC Detecting Condition





Schematic Diagram

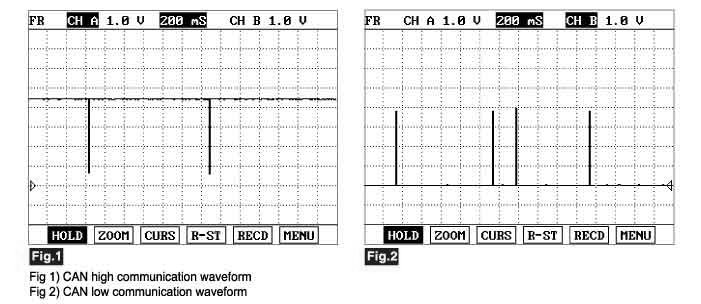

Signal Waveform
