B1587 Chime Short Low

General Information

Component Location





General Description

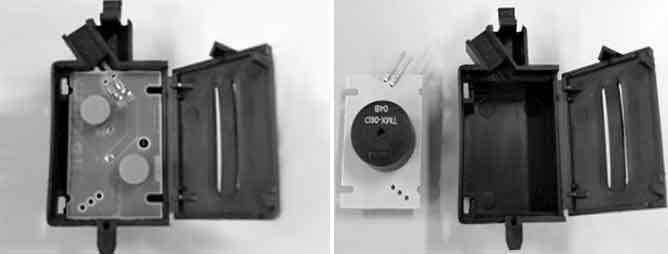

Power sliding door (here in after PSD) is the system which moves sliding door of vehicle by electronic motor so that user can open or close door with less force than required on manual operation. PSD ECU operates chime if there any problem in power door operation, chime buzzer is located at lower part of door motor in drive unit. It dose not operate prior to or during normal power operation. chime shall operate when a power operation cannot be performed as requested except handle pull (1 Time : Duration 0.5 second on) or an obstacle has been detected or PSD has not reached primary latch position after a power cinch cycle (3 Times : 0.5 sec on, 0.5 sec off)

DTC Description

The ECM sets DTC B1587 if alarm voltage value is less than 3 V when alarm output command is on.

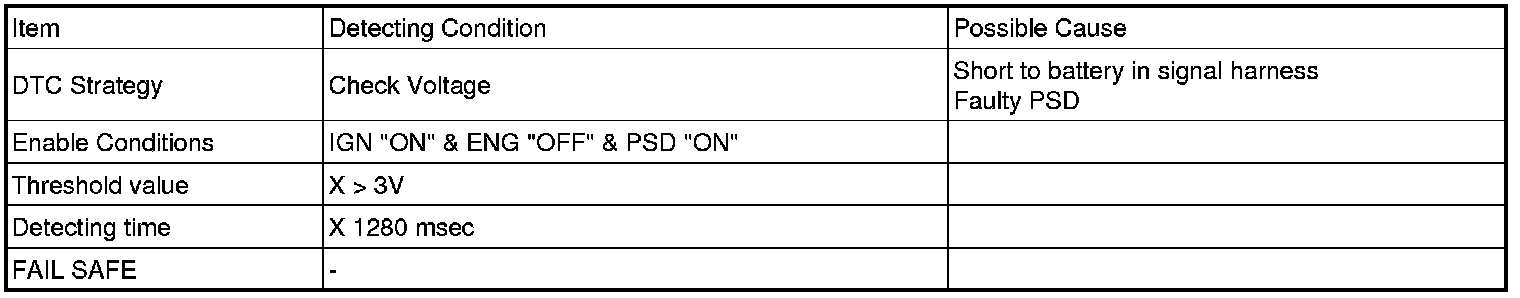

DTC Detecting Condition

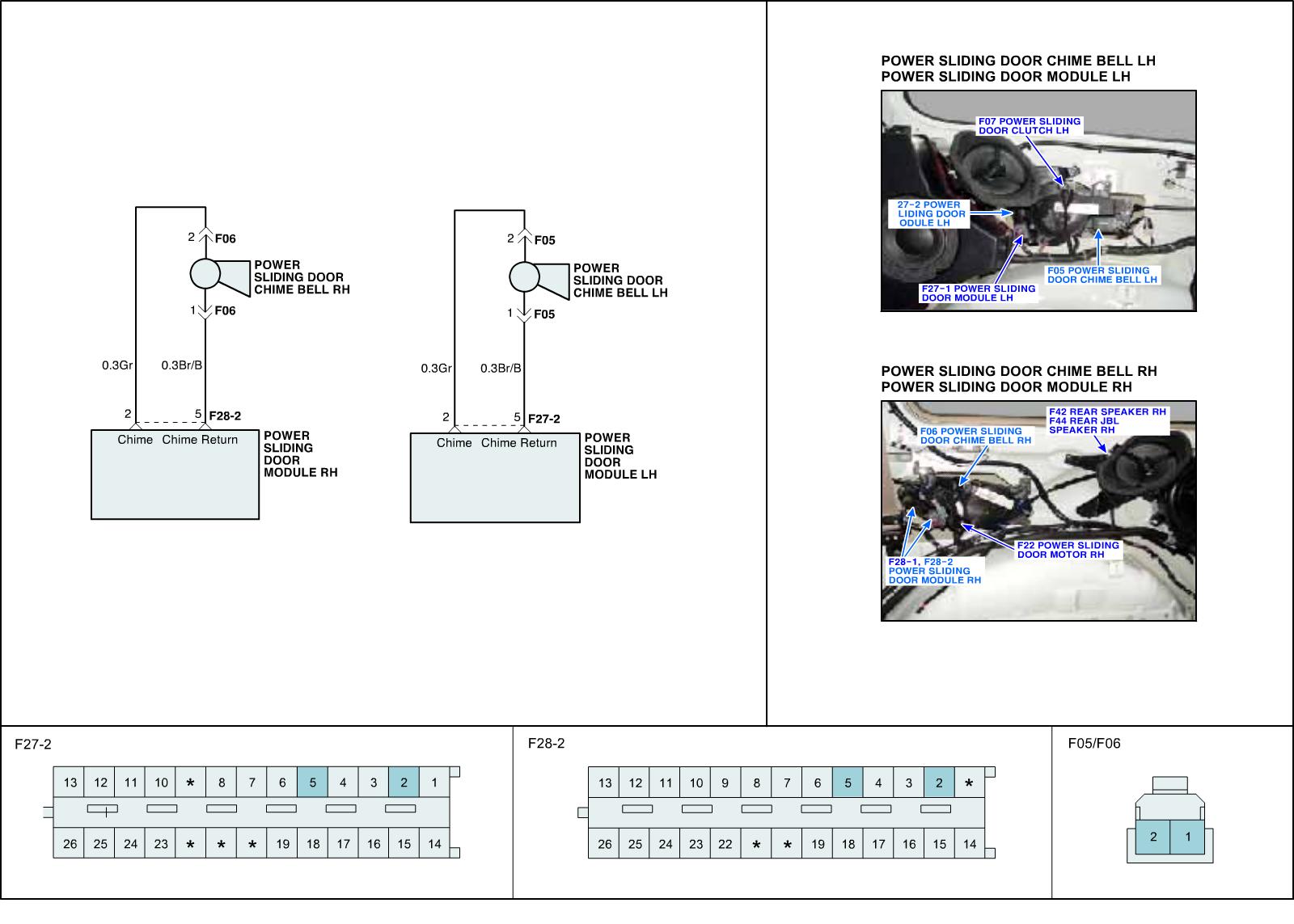

Schematic Diagram
