General Information

B1580 Ignition Start Switch Short High

General Information

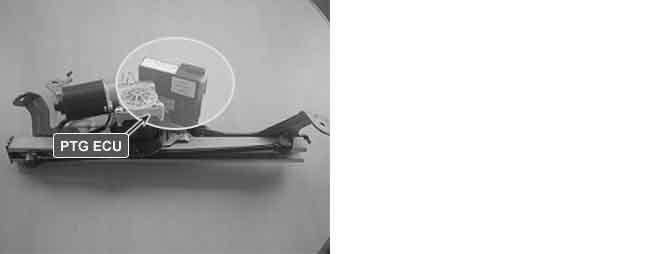

Component Location





General Description

Power Tail Gate (here in after PTG) is the system which moves tail gate of vehicle by electronic motor so that user can open or close door with less force than required on manual operation. After turned on, PTG ECU monitors vehicle speed signal from VSS directly. When power gate open signal is received, PTG ECU checks vehicle speed before operation and if vehicle speed is above 5 km/h (3.10 MPH), PSD ECU cancels power gate operation command for safety (but In case of IG "ON", if shift lever is in 'P' or 'N' position, power door operation is not prohibited)

DTC Description

The ECM sets DTC B1580 if starts switch "ON" signal lasts for 30 sec.

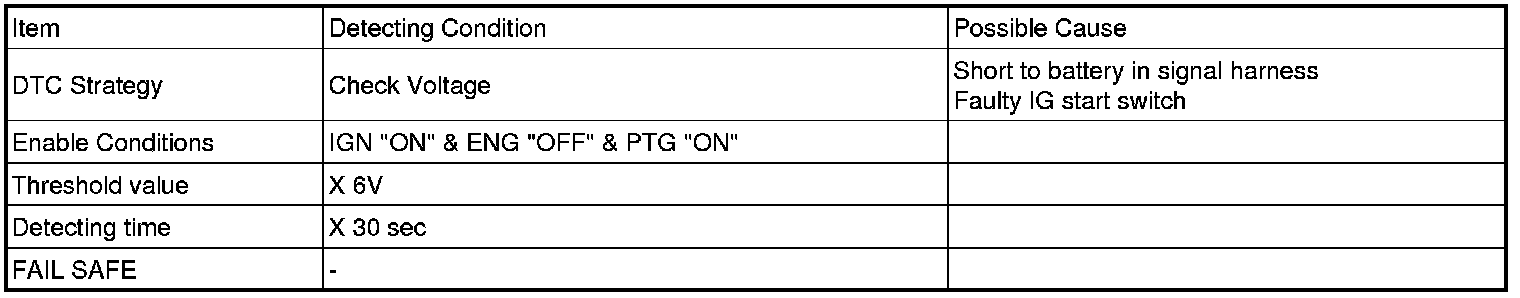

DTC Detecting Condition

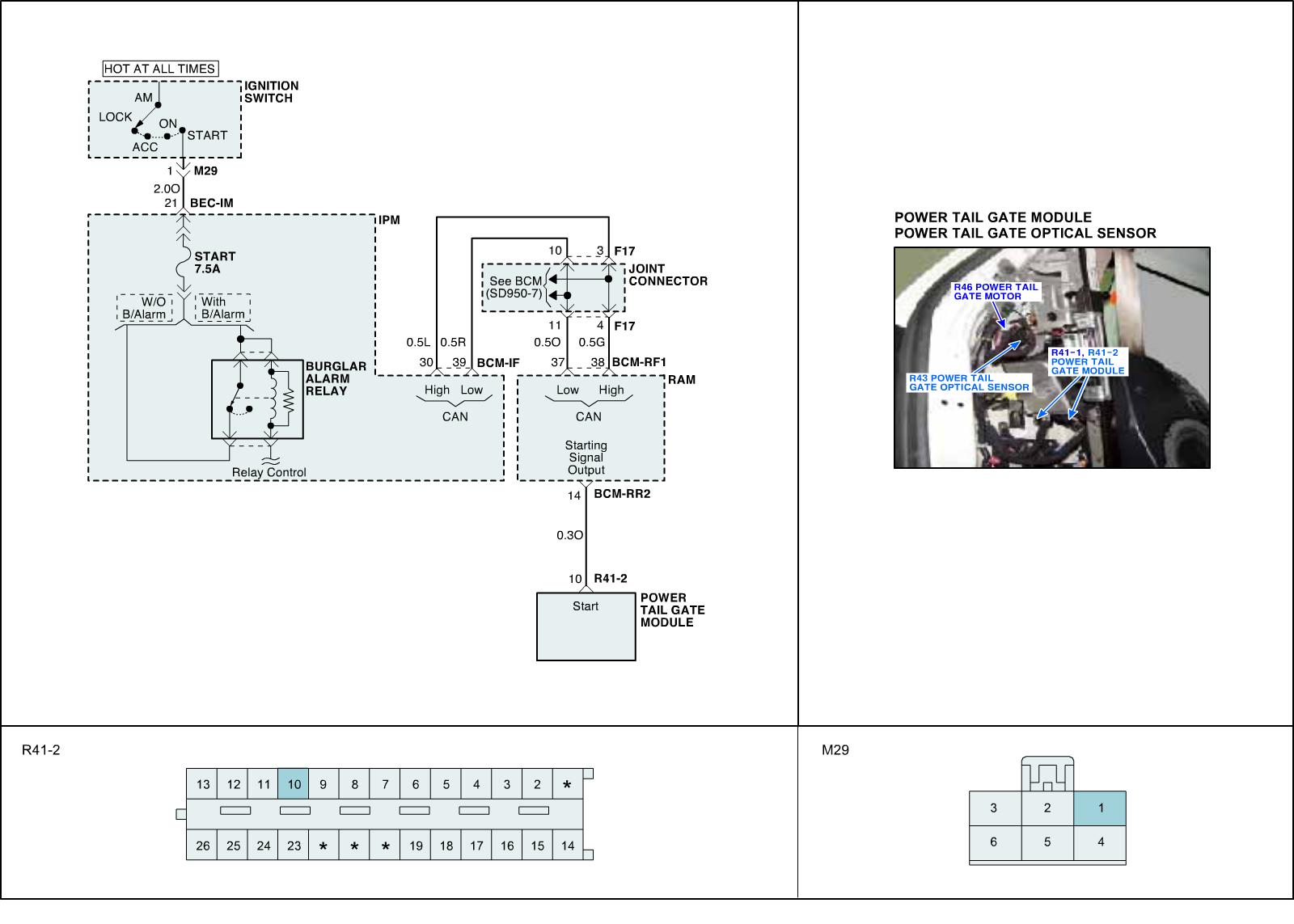

Schematic Diagram










Signal Waveform
